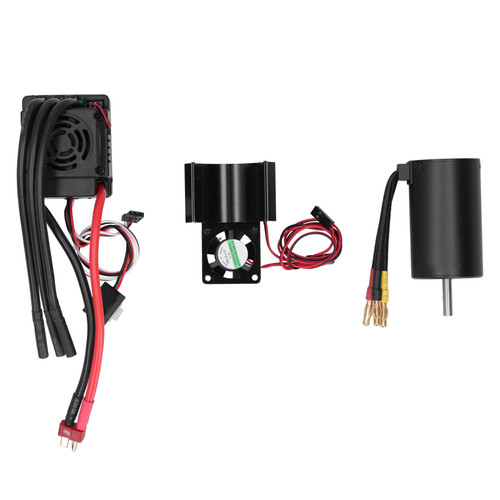

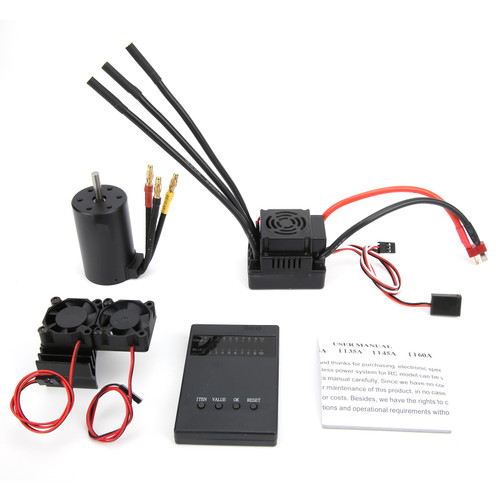

Product Overview
Weight: Approx. 335g/11.8oz
Motor Parameter:
Shell Material: Aluminum alloy
Color: Black and red
Motor Size: Approx. 36x60mm/1.4x2.4in (excluding cable and shaft)
Watt: 1200
Maximum Speed: 50000
Maximum Amperage: 100A
Rotor Pole: 4
Shaft Diameters: Approx. 5mm/0.2in
Shaft Length: Approx. 15mm/0.6in
Connector: 4mm gold head (male head)
ESC Parameter:
Case Material: Plastic
Color: Black
ESC Size: Approx. 53x37x38mm/2.1x1.46x1.5in (without cable)
Continuous Current: 80A
Peak Current: 480A
BCE Output: 6V 5A
Recommended Battery: 2 to 4 cells Lipo, 4 to 12 cell NiMh
Application: for 1/8 RC remote control car
Features
1、Brushless Motor Features: 4 pole 12 slot high torque rotor design, with strong torque and stable output power, strong resistance current ability, great heat dissipation.
2、Superior Craftsmanship: CNC machining 6061 aluminum front and rear covers, high purity high temperature resistant copper coil, effectively provide high efficiency.
3、Tough and Durable: The brushless motor adopts high toughness stainless steel output shaft, highly precise premium bearing, which ensure a long service life.
4、ESC Features: The excellent components to ensure efficient operation. Rich programmable items, excellent startup, acceleration and linearity, suitable for all kinds of RC tires and tracks.
5、Multiple Protection Functions: The brushless ESC with low voltage cut off protection, overheat protection, throttling signal loss protection function, safe to use.
Package List
1 x Brushless Motor
1 x Brushless ESC
Package Weight and Dimension
| Weight | 0.74 lb |
| Width | 4.29 Inch |
| Height | 1.95 Inch |
| Length | 5.85 Inch |
