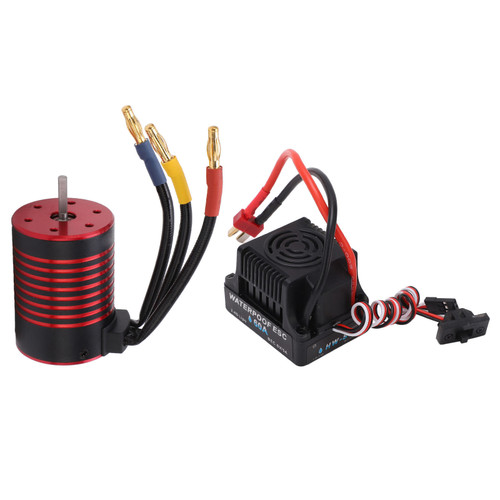

RC Brushless ESC Set 3650 Brushless Motor 60A Electric Speed Controller for RC Car 4500KV

Item Type: RC Brushless ESC
Material: Copper, Plastic, Aluminum Alloy
Color: Black and red
Motor Model: 3650
KV (RPM / Volt): 4500kv
Wattage: 900W
Maximum Speed: 50000
Maximum Amperage: 75A
IO: 2.7A
Resistance: 0.0075
Number of Rotor Poles: 4
Motor Diameter: Approx. 36mm / 1.42in
Motor Length: Approx. 50mm / 1.97in (Without shaft)
Motor Shaft Length: Approx. 15mm / 0.59in
Shaft Diameter: Approx. 3.17mm / 0.12in
Connector: banana head Approx. 4.0mm / 0.16in
ESC Continuous Current: 60A
Maximum Current: 320A
Resistance: 0.0007ohm
Battery: 2-3S cells Lipo
Motor Support: No inductive brushless
BEC Output: 5.8V/ 3A (switching mode)
Product Size: Approx. 50 x 36 x 31mm / 1.97 x 1.42 x 1.22in (without wire)
Scope of Application: Suitable for 1/10 1/12 1/16 RC flat sports or racing models and Suitable for Traxxas, for Hsp, for Redcat, for Tamiya, for Axial scx10, for D90, for Hpi light installation

Features

1、Fully Waterproof Design: 4 pole 12 slot high torsion motor design. Fully waterproof design for all environments. CNC machined 6061 T6 billet aluminum heat sink, high purity copper windings for maximum efficiency, and high speed ABEC5 oversized bearings.
2、Good Heat Dissipation Performance: Precisely balanced rotor with best reliability and maximum speed, convenient and practical. ESC has strong current resistance and good heat dissipation performance. Long service life, a good choice for RC car replacement.
3、Proportional Brake: This ESC is made of plastic and alloy material, 4 speed maximum braking force adjustment and 8 speed resistance braking force adjustment of proportional brake.
4、Multiple Protection: This ESC has multiple protection functions, low voltage cut off protection, overheating protection, throttle signal loss protection and motor blocking protection.
5、Good Compatibility: Built in 5.8V/3A BEC, external programming port, easy to connect program card when setting ESC, compatible with digital LED program card. 60A waterproof brushless ESC compatible with brushless motors with XT60 plug, dustproof, designed for RC model cars.

Package List

1 x 3650 Brushless Motor

1 x 60A ESC

1 x Manual
