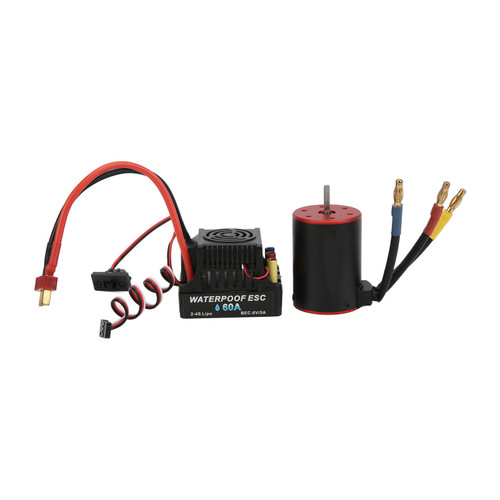

Product Overview
Motor:
Material: Aluminum alloy
Color: Black, red
Maximum Current: 56A
Watt: 900W
Speed: 50000
Motor Size: Approx. 36 x 50mm / 1.4 x 2in (excluding shaft and cable)
Shaft Length: Approx.15mm / 0.6in, Shaft Diameter: Approx.3.17mm / 0.1in
Mounting Hole Diameter: Approx. 3mm / 0.12in
Connector: Approx. 4mm / 0.2in gold banana head
ESC:
Shell Material: plastic
Color: Black
ESC Size: Approx. 53 x 40 x 40mm / 2.1 x 1.6 x 1.6in (without cable)
Continuous Current: 60A
Peak Current: 320A
Applicable Battery: 2-4S Lipo
BCE Output: 6V/5A
Applicable: 1/10 remote control car
Fitment: Fit for Axial, fit for Traxxas, fit for Tamiya and other brand models
Features
1、Motor Design: 4 pole and 12 slots high torsion motor design and high purity copper windings to maximize efficiency. It has high speed and waterproof, which is suitable for all race conditions.
2、Heat Dissipation: CNC machined 6061 T6 billet aluminum casing, which ensures good heat dissipation of the motor, and has longer working time, and is compatible with sensorless brushless motors.
3、Acceleration And Linearity: The brushless motor is specially designed for RC cars, acceleration and linearity characteristics, allowing you to experience a good RC car experience.
4、Multiple Protection Functions: Waterproof brushless motor has lithium or nickel battery low voltage cut off protection, overheat protection throte signal loss protection and motor stall protection.
5、Note: Before using this ESC in water, please remove the cooling fan. Please wash and dry as soon as possible after use to prevent the connector from rusting.
Package List
1 x Brushless Motor
1 x ESC
1 x Instruction Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.68 Inch |
| Height | 1.95 Inch |
| Length | 7.41 Inch |
