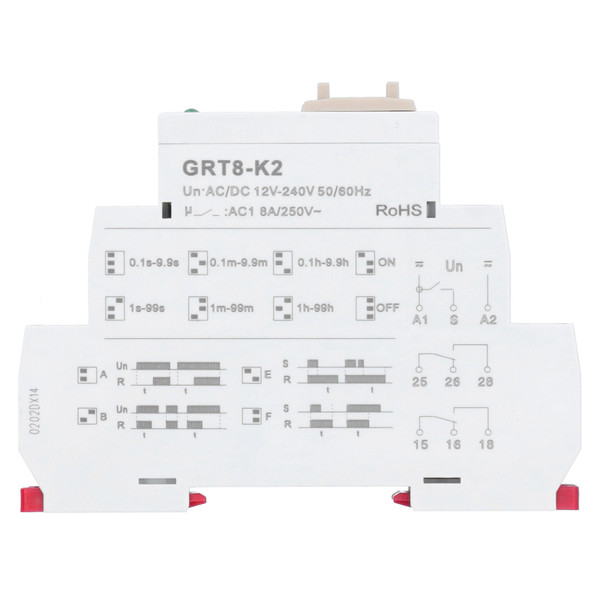

AC/DC 12V-240V 50/60HZ Time Relay 2 Open 2 Close 4 Delay Modes 0.1s -99h Delay Range GRT8-K2

Item Type: Time Relay
Material: ABS
Function: A, B, E, F
Power Terminal: A1-A2
Power Consumption: AC 0.09-3VA/DC 0.05-1.7W
Power Consumption: AC maximum.6VA/1.9W
Power Supply Allowable Fluctuation Range: -15%; +10%
Power Indicator: Green LED
Delay Range: 0.1 second -99 hours, normally open, normally closed
Setting Method: Digital dialing setting
Delay Accuracy: 1%
Repeatability: 0.2%
Temperature Fluctuation Error: 0.05%/°C, at=20°C (0.05%, at=689°F)
500mW
Minimum Switching Power: 500mW
Output Relay Indication: Red LED
Mechanical Life: 1x100000000
Electrical Life (resistive load): 1x1000000
Reset Time: 200ms maximum
Working Environment Temperature: -20℃-+55℃
Storage and Transportation Environment Temperature: -35℃-+75℃
Installation Method: 35mm rail installation
Protection Level: IP20
Installation Location: Any
Installation Altitude: s2000 meters
Pollution Degree: 2
Wiring Capacity: 1x2.5mm² or 2x1.5mm² 0.4N-m

Features

1、AC/DC 12V‑240V time relay, 4 delay modes can be set to meet different needs.
2、With digital dialing setting method, the setting is more precise.
3、Ultra‑wide delay range, 0.1 second to 99 hours can be set, practical to use.
4、IP20 protection level, 1x100000000 mechanical life, 1x1000000 electrical life.
5、35mm rail installation, simple and quick, can be installed in any position at will.

Package List

1 x Time Relay

1 x Manual
