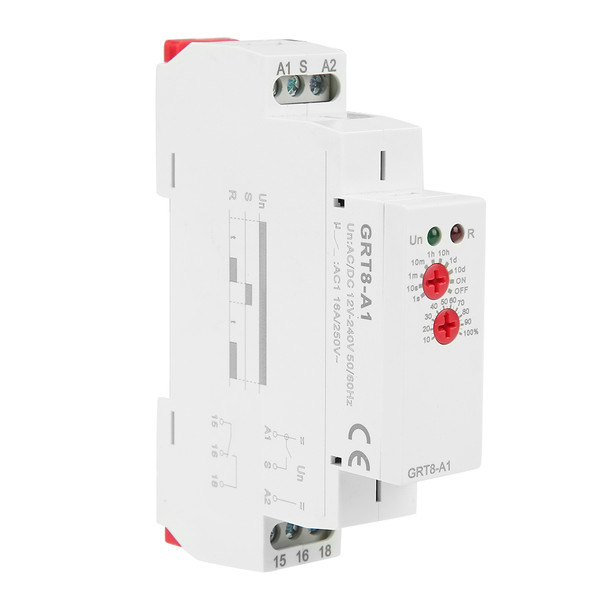

GRT8-A1 Mini Power On Delay Time Relay DIN Rail Type AC/DC 12V~240V

Features:
1. This is a single function power-on delay relay and time delay can be set by panel knob.
2. Super wide time delay range, 0.1s - 10days (10 kinds of settings).
4. Relay working status is indicated by LED indicators.
5. With super small volume, this relay can be mounted on 35mm DIN rail.

Specification:
Function: Delay ON
Power terminal: A1-A2
Power consumption: AC 0.09-3VA/DC 0.05-1.7W
Setting method: knob
Power indicator: Green LED
Delay range: 0.1s-10 days, normally open, normally closed
Setting accuracy: 10%
Output contact: 1 x SPDT, 16A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Output relay indication: red LED
Mechanical life: 1x107
Reset time: Max 200ms
Working temperature: -20℃~55℃
Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Weight: Approx. 75g/2.6oz

Package list:
1 * On Delay Time Relay

Features

1、This is a single function power-on delay relay and time delay can be set by panel knob.
2、Super wide time delay range, 0.1s - 10days (10 kinds of settings).
3、AC/DC 12V-240V working voltage.
4、Relay working status is indicated by LED indicators.
5、With super small volume, this relay can be mounted on 35mm DIN rail.
