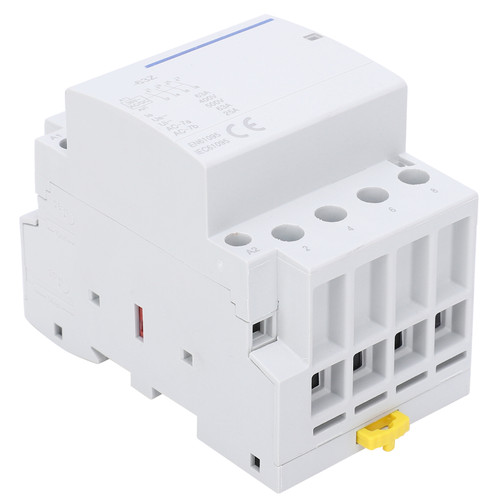

Product Overview
Size: Approx. 36mm / 1.4in
Approx. 68mm / 2.7in
Approx. 49mm / 1.9in
Approx. 23.5mm / 0.9in
Approx. 5.5mm / 0.2in
Approx. 81mm / 3.2in
Approx. 4mm / 0.2in
Approx. 45mm / 1.8in
Standards Compliant: GB/T 17885、IEC/EN61095
Can be used for intelligent control system
DC mute
Main Parameters and Technical Performance:
Rated Voltage (Ue): 400VAC
Rated Current: 25A
Frequency: 50/60Hz
Mechanical Life (O-C): 1 million times
Electrical Life: 100,000 times
Maximum Number of Switch Operations Per Day: 100
Insulation Voltage (U): 500VAC
Pollution Degree: 2
Protection Level of Contactor Body: IP20
Protection Level of Installed in the Distribution Box: IP40
(IEC 60529)
Working Temperature: -5℃-+60℃
Storage Temperature: -40℃-+70℃
Humidity and Heat Resistance (IEC60068.1)
Class 2 (when the temperature is 55℃, the relative humidity is 95%)
Features
1、This product has a long battery life B series contactors have been tested and verified and can withstand 100,000 full‑load switching times under the AC‑a load category
2、Super sound‑off. The B series eliminates the obvious impact sound of the traditional contactor at the moment of closing, and eliminates the low‑frequency buzzing sound of the contactor during operation.
3、This product is suitable for most building electrical fields. Especially the AC/DC series has achieved zero noise, creating a very quiet environment for you
4、This product is super energy saving. The optimized electromagnetic system of the B series contactor greatly reduces the holding power of the contactor
5、This product is in ultra small size. The width of the B series contactor is much smaller than that of the traditional contactor, which saves the user's installation space and can be easily installed in the ordinary distribution box
Package List
1 x Contactor
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.56 Inch |
| Length | 3.51 Inch |
