Product Overview
Scope of Application:

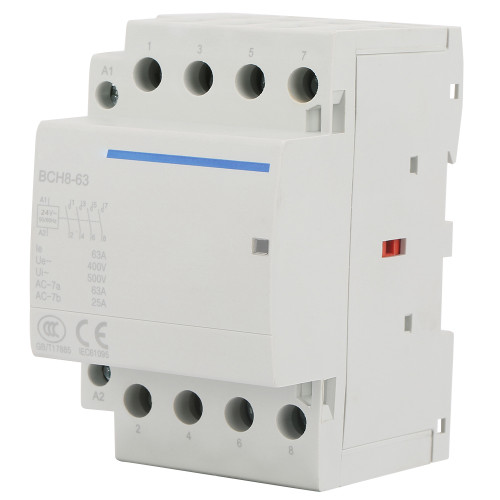

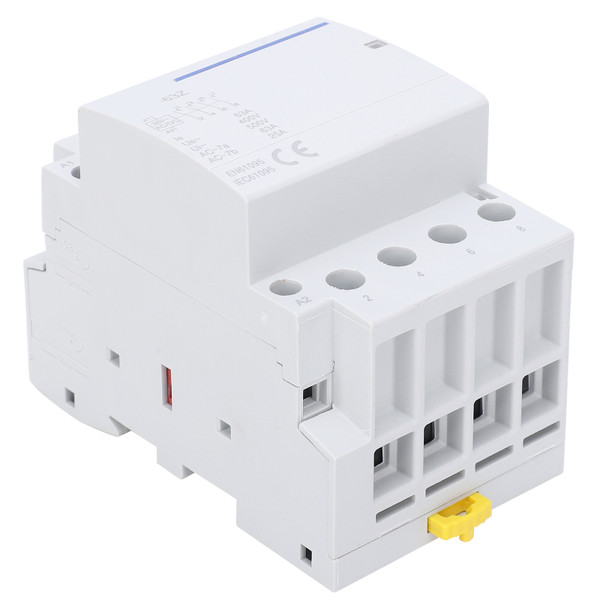

BCH8 series of household contactors (hereinafter referred to as contactors) are mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated working current to 100A circuits, to control low-inductance and micro-inductive loads of household appliances and similar purposes; also available To control the load of the household motor, the control power should be reduced accordingly.
The products are used in homes, hotels, apartments and other places to achieve automation functions and are used in mass-produced household appliances.
Compliant standards: GB/T 17885, IEC/EN61095
Scope of Application:
BCH8 series of household contactors (hereinafter referred to as contactors) are mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated working current to 100A circuits, to control low-inductance and micro-inductive loads of household appliances and similar purposes; also available To control the load of the household motor, the control power should be reduced accordingly.
The products are used in homes, hotels, apartments and other places to achieve automation functions and are used in mass-produced household appliances.
Compliant standards: GB/T 17885, IEC/EN61095
Can be used for intelligent control system.
DC mute
Main Parameters and Technical Performance:
Rated Voltage: 400V AC
Rated Current: 63A
Frequency: 50/60Hz
Mechanical Life (O-C): 1 million times
Electrical Life: 100,000 times
Maximum Number of Switch Operation Per Day: 100 times
Coil Voltage: AC/DC 24V, AC/DC 36V
Insulation Voltage (U): 500VAC
Pollution Degree: 2
Rated Impulse Withstand Voltage (Uimp): 2.5kV (4kV at 12/24/48VAC)
Protection Level of Contactor: IP20
Protection Level Installed in Distribution Box: IP40 (IEC 60529)
Working Temperature: -5℃-+60℃
Storage Temperature: -40℃-+70℃
Humidity and Heat Resistance: (IEC60068.1)
Class 2 (when the temperature is 55℃, the relative humidity is 95%)
ELSV (Extra Low Safety Voltage) compliance for 12/24/48VAC versions
The product control conforms to the SELV (Safety Extra Low Voltage) requirements.
Approx. 54mm / 2.1in
Approx. 85mm / 3.3in
Approx. 5.5mm / 0.2in
Approx. 68mm / 2.7in
Approx. 49mm / 1.9in
Approx. 23.5mm / 0.9in
Approx. 45mm / 1.8in
Approx. 4mm / 0.16in
Features
1、The contactor eliminates the palpable impact sound of the traditional contactor at the moment of closing, and the low‑frequency buzzing sound during work.
2、The contactor has an optimized electromagnetic system, which greatly reduces the holding power of the contactor.
3、The width of the contactor is much smaller than that of the traditional contactor, which saves the user's installation space and can be easily installed in the ordinary distribution box.
4、The auxiliary contact can be extended on the right side of the contactor, which is more suitable for the signal feedback requirements in the intelligent control environment.
5、Mainly suitable for most building electrical fields, or used in homes, hotels, apartments and other places to achieve automation functions.
Package List
1 x Contactor
Package Weight and Dimension
| Weight | 0.79 lb |
| Width | 3.12 Inch |
| Height | 2.34 Inch |
| Length | 3.51 Inch |
