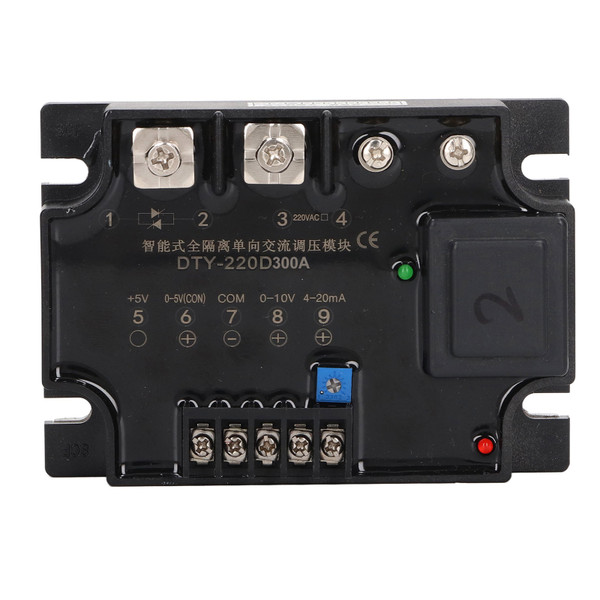

AC Voltage Regulator Module Single Phase Full Isolated 4‑20mA DC 0‑5V 0‑10V To AC Power Supply Module

Item Type: AC Voltage Regulator Module
Material: Metal, PBT, DCB ceramic
Rated Current: 300A
Input Control: 0-5V 0-10V 4-20mA multi signal
Control Type: Intelligent stepless regulation
Ambient Temperature: -20℃ to 70℃
The coefficient depends on the load type of the equipment you want to carry: Resistive load: 60% Inductive load: 30%
Application:
Heating: Electric stove, injection molding equipment, thermoforming equipment, textile equipment, infrared heating, drying system
Motor: Soft start of fan motor, water pump motor and ordinary motor
Lighting: Public lighting, industrial lighting, stage lighting
Others: Transformer, inductance coil, electric welding, electroplating

Features

1、Multi Input Methods: The module supports 4 to 20mA, 0 to 5V DC, 0 to 10V DC inputs, which will be controlled automatically, and can also be controlled manually by potentiometer. The module outputs AC, with high precise and strong anti interference.
2、Full Isolation: The terminal and main electrical circuit are fully isolated, the module uses safe electronic components, high power thyristor chip and DCB ceramic backplane, small in size, stable in performance and high in reliability.
3、LED Indicator: The module is equipped with green LED power indicator and red LED output regulation indicator, more intuitive and convenient for using.
4、High Safety: With linear compensation function, built in SCR protection circuit, output maximum limit and adjustment function, slow start adjustment function, effective protect module.
5、Wide Applications: This module can be used for heating equipment, motor, lighting equipment, transformer, inductance coil, electric welding, electroplating and more.

Package List

1 x AC Voltage Regulator Module
