AC220V G1" Electric Valve 3-Wire 2-Point Control Female Male Thread Motorized Ball Valve

Features:
1. High quality ball valve would be excellent choices for shutoff and control applications.
2. Simple three wire connection, with two points of control.
3. Made of high quality brass for rust protection and long service life.
4. Accurate threads ensure the firmness and sealing of the connection.
5. The electric ball valve can rotate 90 degrees to quickly open and close.

Specification:
Condition: 100% Brand New
Item Type: Electrical Ball Valve
Body Material: Brass
Working Temperature: 2~90°C
Running Time: ≤15S
Power Consumption: 6W
Sealing Material: Poly-disodium
Valve Performance Characteristics: 90 degree rotation
Working Medium: 50% ethylene glycol solution
Working Pressure: 1.6mpa
Connection Method: Thread G1
Actuator Performance Characteristics: Three-wire two control

Package List:
1 x Electrical Ball Valve
1 x User Manual

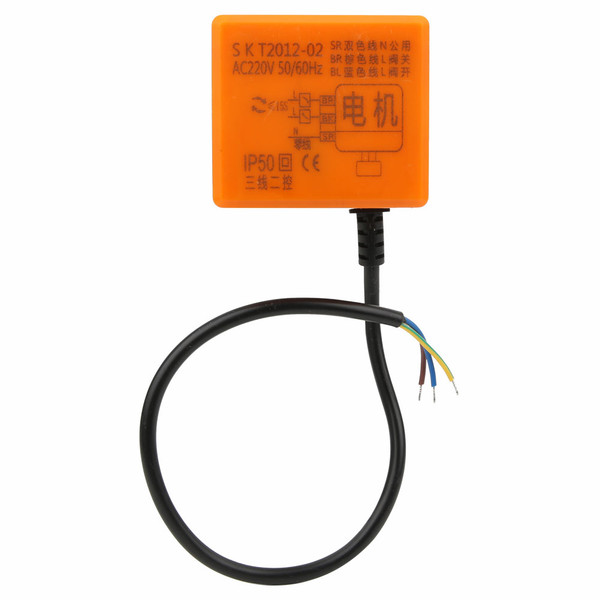

Wiring:
Brown-off
Blue-open
Yellow-common
