Product Overview

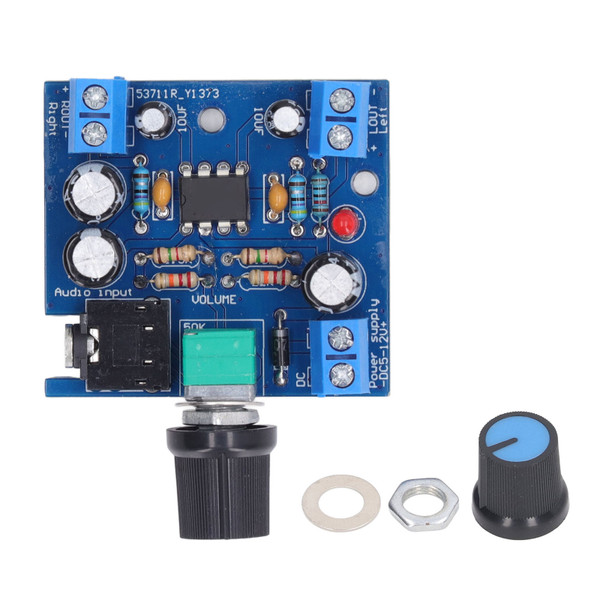

Item Type: Audio Amplifier Board
Material: Board
Quiescent Current: 25mA
Horn Impedance: 4-8ohm
Output Power: 15W (maximum 18W)
Total Harmonic Distortion: 0.08% (Po=0.1 14W, RL=4ohm)
Signal to Noise Ratio: 94-106dB (1-15W)
Working Temperature: -25℃ to 85℃
Operating Humidity: 5% to 95% RH
Material: Board
Quiescent Current: 25mA
Horn Impedance: 4-8ohm
Output Power: 15W (maximum 18W)
Total Harmonic Distortion: 0.08% (Po=0.1 14W, RL=4ohm)
Signal to Noise Ratio: 94-106dB (1-15W)
Working Temperature: -25℃ to 85℃
Operating Humidity: 5% to 95% RH
Features
1、Large Capacity: Double row symmetrical capacitors, large enough in capacity and quantity, with perfect filtering effect.
2、Volume Adjustment: The volume can be adjusted at will as required, this audio power amplifier board is highly practical to use.
3、Widely Use: This audio amplifier board can be widely used in store solicitation, home theater, square speakers, etc.
4、Stable Performance: The power amplifier board adopts excellent components, ensures long term stability.
5、Easy Operation: Power amplifier board has wide application range, convenient to use, compact in size, easy to install.
Package List
1 x Audio Amplifier Board
1 x Gasket
1 x Nut
1 x Accessory
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.73 Inch |
| Height | 0.78 Inch |
| Length | 3.12 Inch |
