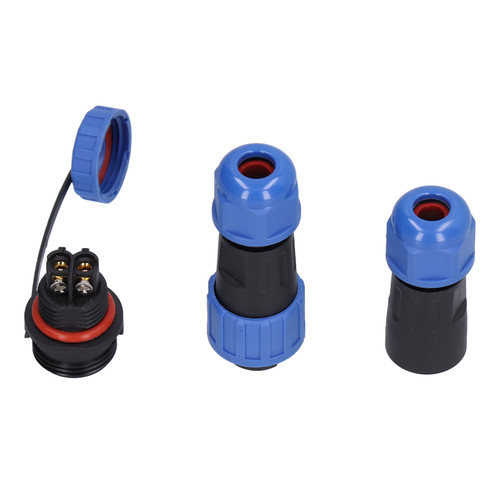

Aviation Cable Connector Socket Waterproof 4 Pin Male Plug Female Sockets 380V 5A LP16

Item Type: Aviation Cable Connector Socket
Material: PA66, PPS, Silicone, Copper
Uses: Widely used in Communication Equipment, Instrumentation, Computers, Program Controlled Machines, Alarms, etc. and Bridge Electronic Equipment
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (High Temperature Resistant 220℃)
Contact Material: Copper (Gold Plated)
Connection Method: Soldering (If solder paste is used, must be cleaned with alcohol)
Connection Method: Threaded Connection
Head Size: Approx. 16mm / 0.63in
Insulation Resistance: 2000MΩ
Number of Cores: 4 Cores
Contact Diameter: Approx. 1mm / 0.04in
Copper Pin Applicable Cable: 0.2-2m㎡
Applicable Current: 5A
Applicable Cables for Shell: Φ6-12m㎡
Applicable Panel Thickness: Approx. 0.1-4mm / 0.004-0.16in
Mating Times: More than 500 Times
Operating Temperature Range: -25℃ to 85℃
Tightness: Conform to IP68

Features

1、Basic Specifications: This is a 380V 5A 4 core LP16 non welded nut type IP68, waterproof aviation connector.
2、Screw Crimping Method: The socket for welding free installation adopts the screw crimping method. The installation can be completed with only a screwdriver, which is simple and fast.
3、Silicone Waterproof Cover: There is a silicone waterproof cover at the line of the shell, which is tight and waterproof. A variety of specifications and cores are optional to meet the needs of use.
4、Solids Pins: The plugs and sockets have solids pins, which are resistant to plugging and unplugging,and are gold plated with pure copper, which is resistant to oxidation and has a long service life.
5、PA66 PA6 Materials: The waterproof aviation connector shell is made of PA66 and PA6 materials, which have good corrosion resistance and flexibility, and will not cause the safety hazard of cracking due to low temperature.
6、Application: The plug socket is widely used in communication equipment, instrumentation, computer, program control machine, alarm, etc. and bridge electronic equipment.

Package List

1 x Male Plug

1 x Female Socket
