Battery Active Equalizer 5A 4S Cell Unit Voltage Balancer Volt Balance Board Set Kit

Item Type: Battery Active Equalizer
Material: Aluminium Alloy
Applicable battery type: For ternary lithium battery, LFP battery.
The Number Adaptive Battery Strings: 4 Strings
Maximum Equalizing Current: 5A
Forced Equilibrium Timing: 60 Minutes
Cable Interface: 3.81 iInterface
Balance Method: Parallel energy transfer method.
Standby Load Power Consumption: <5mA 12V, 4th string power supply.

Features

1、Good Balancing: The ultra low internal resistance MOS device together with intelligent MCU chip main control management constitutes an ultra low dynamic impedance inverter circuit to achieve automatic balance work with high power.
2、Safe Operation: Has input terminal over current fuse resistor in each string, the board automatically detects the minimum voltage of the battery and stops working when the battery is low in energy, protecting the battery from power loss.
3、Dual Work Mode: Supports both automatic and manual dual trigger mode, also has manual forced timing balance off function for convenient operation.
4、Stable Working: The fully symmetrical transformer ensures the minimum pressure difference can be guaranteed, while the inverter design enables quick heat dissipation for stable working.
5、Easy to Install: Designed to have a compact size and a light weight as well, the installation can be quickly completed in minutes.

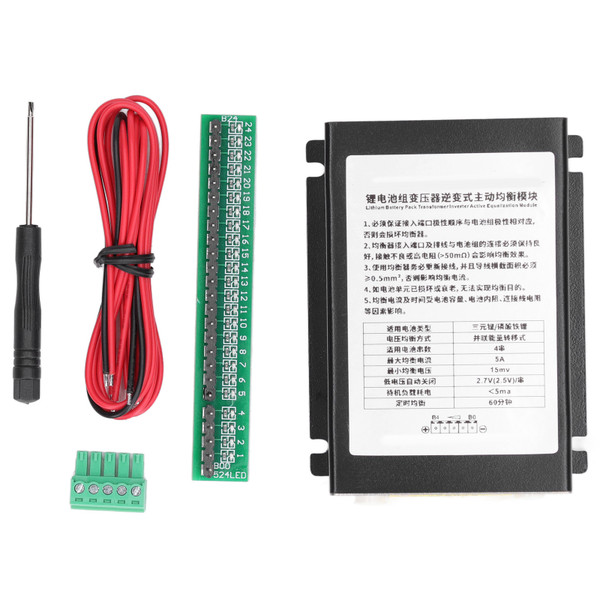

Package List

1 x Battery Active Equalizer

1 x Pin Header

1 x Short Interface Pin Header

1 x Cable

1 x Screwdriver

1 x User Manual
