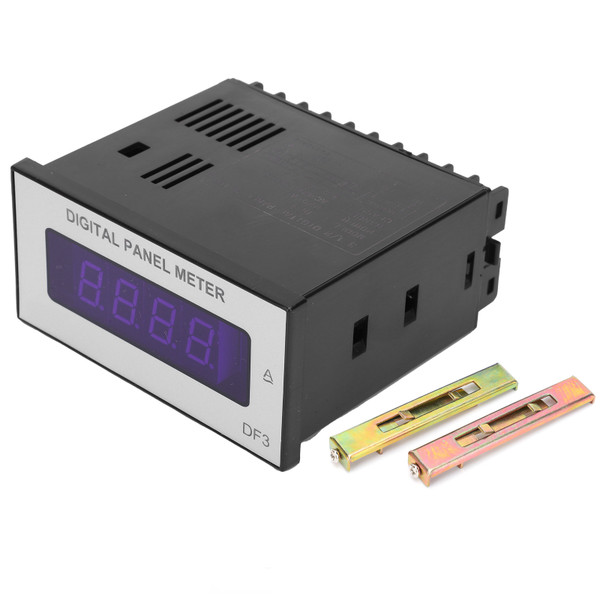

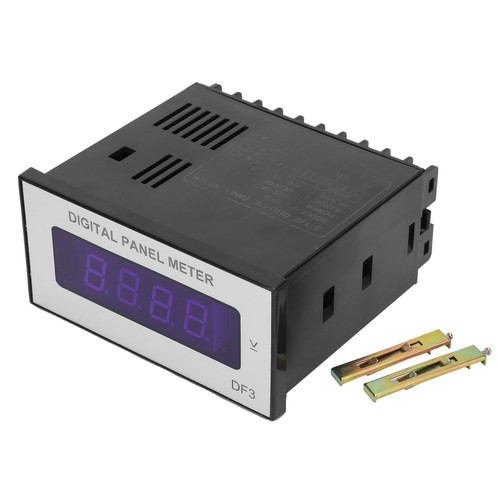

BERM Display Panel Meter 3 1/2 Digital Snap Install Voltage Measuring Instrument 200A

Item Type: Display Panel Meter
Model: DF3
Material: Plastic
Display Range: 0~±1999
Response Time: 0.3s
Accuracy: 0.01
Working Temperature: 0~60℃
Accuracy: ±0.5%F.S
AC: 200A (200: 5)
Resolution: 100mA
Maximum Allowable Input: 1.2 F.S
Input Resistance: 2000A: 5A
Polarity Display: Only "﹣" is displayed (only for DC)
Display: Red digital tube
Installation Method: Panel type

Features

1、The digital display panel is used to install and fix on the screen of the device for viewing and measurement.
2、The measuring panel has a digital tube display, stable internal performance and accurate measurement.
3、The digital display panel is small in size and light in weight, convenient to carry and does not take up space.
4、The input terminal adopts wiring terminal, which is reliable, convenient and easy to install.
5、Usually installed on the panels of industrial equipment, such as voltmeters, counters, thermostats, regulators, etc.

Package List

1 x Digital Panel Meter

2 x Buckle

1 x User Manual
