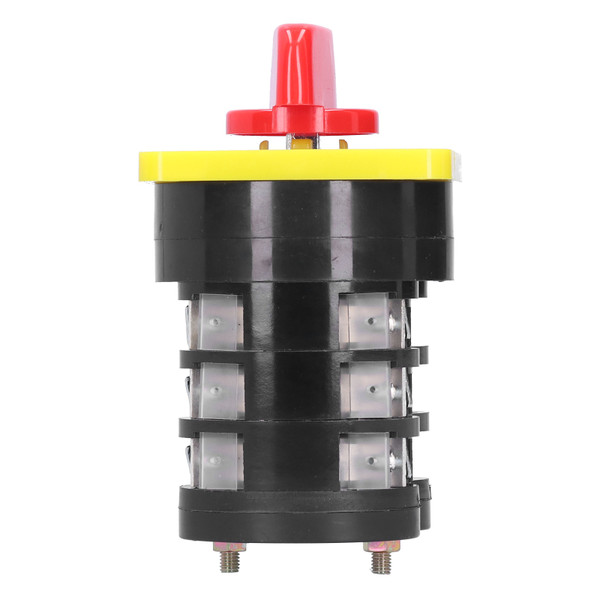

Cam Switch Universal Rotary 3‑Position Changeover Switch LW5D‑16D0723/3 110‑380V 16A

Condition:100% Brand New
Item Type: Cam Switch
Material: PC, Silver Alloy, Red Copper
Uses: Wide range of uses, can be used as circuit control switches, test equipment switches, motor control switches, master control switches, and transfer switches for electric welding machines.
Gear Position: 1-0-2
Reset Method: Positioning Type
Rated Voltage (Ue): 110-380V
Rated Insulation Voltage (Ui): 500V
Conventional Heating Current (Ith): 16A
Rated Impulse Withstand Voltage (Uimp): 4kV
Mechanical Life: 1000000 times, operating frequency is 300 times/hour

Features

1、The product is beautiful, exquisite workmanship, flexible handle and small size.
2、Using thick copper parts, it has excellent conductivity and not easy to slip wire.
3、Silver alloy contacts and good electrical conductivity make the switch work more stable.
4、Stable operation, convenient and quick installation, can be used as circuit control switch, test equipment switch, etc.
5、PC material is flame retardant and high temperature resistant, good insulation performance, high temperature resistance and not easy to age.

Package List

1 x Cam Switch
