Car Driving Recorder 6 Channel 360° Panoramic Remote Wire Control with 4 Cameras Universal Modification

Item Type: Mobile Digital Video Recorder
Material: ABS + Metal
Remote Control 1: Built-in 1pc CR2025 button battery 100mah
Remote Control 2: Built-in 1pc CR2025 button battery 100mah
Video Format: PAL/NTSC (automatic identification, note: the camera needs to be connected before power on, this machine supports mixed formats)
Video Parameters of Each Channel:
Resolution: 640x480
Refresh Rate: 30 frames per second
Peak Value: 1Vp-p
Impedance: 75Ω
Video Interface: 6 inputs (6P connector interface), 1 output (RCA interface)
Video Recording: Memory card (less than or equal to 64G, not included), the recording format is AVI
Audio: 1 in 1 out (reserved function)
Default Boot Screen: The default boot Tian character -shaped or H-shaped four-screen mode, selectable in the menu
Video mode Same screen video mode
Picture Mode: Tian character-shaped four-picture mode, H-type four-picture mode, picture mode, picture mode, and single-picture full screen and other picture modes
Host Protection Mode: Power loss protection (automatically shut down when the voltage is lower than the set value)
Operation Screen Mode: Wire control: high level trigger / wireless handle / manual button
Positive/Mirror Selection: OFF/ON
Host Operation Power Consumption: 2W
Output Power: 5V/1A (camera power supply)
Rated Voltage: DC 12V/24V
Maximum Voltage: DC 9V-36V
Working Temperature: 0℃ to +55℃
Application: Universal Modification

Features

1、Compact Size: The 6 channel car recorder features mini size, making the installation more more convenient.
2、With Cameras: The car DVR with dual core camera, the monitoring perspective is wider and more intuitive.
3、Control Methods: Support wireless handle control and wire control triggering, making it more flexible to use.
4、Car Battery Protection: The driving recorder supports power loss shutdown and effectively protect car battery.
5、Features: Multiple display mode settings. Support dual modes of navigation monitor and independent TFT‑LCD. Support G‑sensor for recording.

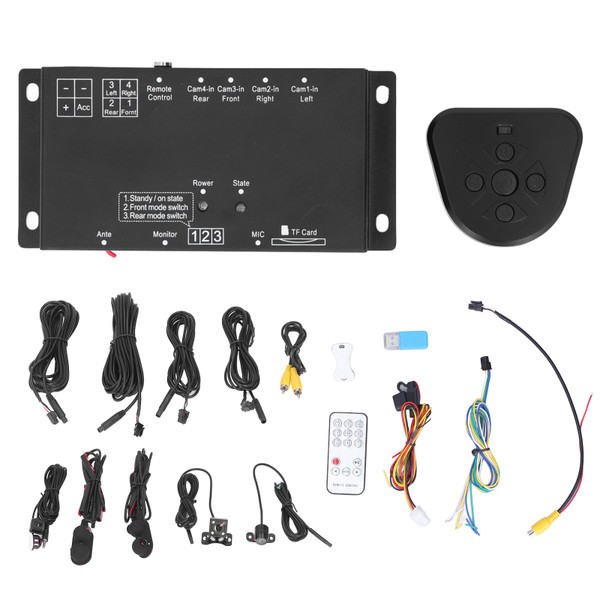

Package List

1 x Video Control Box

4 x Sets of Camera

4 x Camera Extension Cable

1 x Signal Line

1 x Power Cord

1 x Audio Cable

1 x Insurance Line

1 x Manual

1 x Reversing Line

2 x Remote Control

1 x USB Card Reader

1 x Sticker
