Product Overview
Description:
This product is not a transmitter but can receive the mobile phone signal. It provides a good experience, but also a new life attitude. It can easily solve the problems that no signal at home, can not hear each other's voice, no reason to disconnect the line. To make up for the lack of mobile communication network coverage, expand the coverage of base stations, eliminate the blind area, it is one of the most effective and economical equipment. (Applicable scene: hotel, shopping mall, villa, large household, etc.)
Features:
The repeater works with two antennas. One is the indoor antenna which communicates with your cell phone or laptop data card, and another one is the outdoor antenna which communicates with the cell tower.
The radiation is nearly zero, adopts good quality materials, which can effectively blocking radiation, no harm to human.
Adopts intelligent chip, which can enhance signals. Comprehensive and multidirectional coverage with strong penetration.
Reduces dropped and missed calls and provides stronger signal performance for multiple simultaneous users.
Compact size and beautiful appearance, space-saving and convenient to use.
Comes with mounting accessories, easy to install, no technical experience needed.
Specification:
Material: ABS + Metal
Color: Blue
Working Frequency: Uplink: 824-849MHZ, Downlink: 869-894 MHZ
Gain (dB): Uplink: Gp≥60; Downlink: Gp≥65
Output Power: ≥36dBm
Flatness: dB
Impedance: 0 Ω/N
Noise Coefficient: ≤3dB
Connector Type: F-female
Transmission Delay: ≤0.5 μs
Ambient Temperature: -10℃-60℃
EMC ETSI EN 301 489-1 V1.9.2
EMC ETSI EN 301 489-8 V1.2.1
Covering Area: 100-1000 m2 (multiple indoor antenna sets are needed for large area)
Size: Approx. 14x8.5x2.5 cm/ 5.51x3.35x0.98 inch
Antenna Cable Length: Approx. 10m/ 32.81 feet

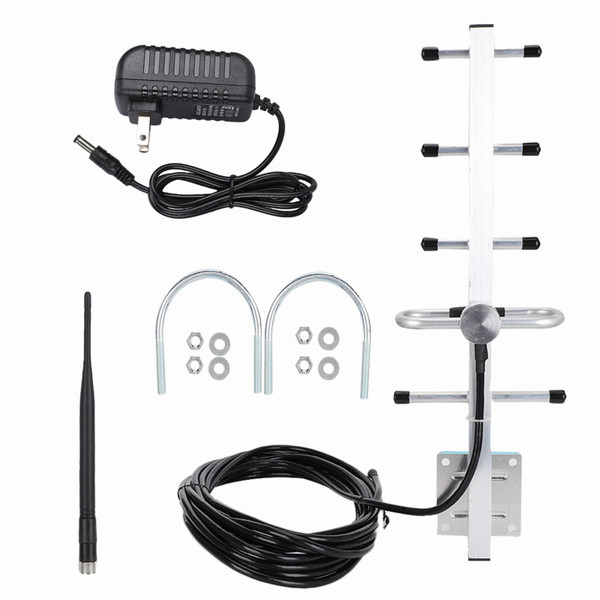

Packing List:
1 x 850MHZ Repeater
1 x Antenna with 10m Cable
1 x Small Antenna
1 x User Manual
1 x Antenna Mounting Accessory Package
1 x Power Adapter
Note:
1. CDMA850 host only supports 2G call of 2G, 3G and 4G mobile phones and 2G 3G Internet access in some areas, but does not support 4G Internet access. So when installing an amplifier, remember to turn off the phone's 3G, 4G signal or you won't see the signal change and mistakenly think the amplifier is useless.
2. Adopts high-gain 800-960MHZ directional antenna outdoors, and 800-2700MHZ omni-directional ceiling antenna or high-gain flat plate antenna indoors. The power divider and connector are N-K or F type, and the signal transmission line is 50 ohm-7 or 75 ohm-7 double-shielded coaxial cable.
This product is not a transmitter but can receive the mobile phone signal. It provides a good experience, but also a new life attitude. It can easily solve the problems that no signal at home, can not hear each other's voice, no reason to disconnect the line. To make up for the lack of mobile communication network coverage, expand the coverage of base stations, eliminate the blind area, it is one of the most effective and economical equipment. (Applicable scene: hotel, shopping mall, villa, large household, etc.)
Features:
The repeater works with two antennas. One is the indoor antenna which communicates with your cell phone or laptop data card, and another one is the outdoor antenna which communicates with the cell tower.
The radiation is nearly zero, adopts good quality materials, which can effectively blocking radiation, no harm to human.
Adopts intelligent chip, which can enhance signals. Comprehensive and multidirectional coverage with strong penetration.
Reduces dropped and missed calls and provides stronger signal performance for multiple simultaneous users.
Compact size and beautiful appearance, space-saving and convenient to use.
Comes with mounting accessories, easy to install, no technical experience needed.
Specification:
Material: ABS + Metal
Color: Blue
Working Frequency: Uplink: 824-849MHZ, Downlink: 869-894 MHZ
Gain (dB): Uplink: Gp≥60; Downlink: Gp≥65
Output Power: ≥36dBm
Flatness: dB
Impedance: 0 Ω/N
Noise Coefficient: ≤3dB
Connector Type: F-female
Transmission Delay: ≤0.5 μs
Ambient Temperature: -10℃-60℃
EMC ETSI EN 301 489-1 V1.9.2
EMC ETSI EN 301 489-8 V1.2.1
Covering Area: 100-1000 m2 (multiple indoor antenna sets are needed for large area)
Size: Approx. 14x8.5x2.5 cm/ 5.51x3.35x0.98 inch
Antenna Cable Length: Approx. 10m/ 32.81 feet
Packing List:
1 x 850MHZ Repeater
1 x Antenna with 10m Cable
1 x Small Antenna
1 x User Manual
1 x Antenna Mounting Accessory Package
1 x Power Adapter
Note:
1. CDMA850 host only supports 2G call of 2G, 3G and 4G mobile phones and 2G 3G Internet access in some areas, but does not support 4G Internet access. So when installing an amplifier, remember to turn off the phone's 3G, 4G signal or you won't see the signal change and mistakenly think the amplifier is useless.
2. Adopts high-gain 800-960MHZ directional antenna outdoors, and 800-2700MHZ omni-directional ceiling antenna or high-gain flat plate antenna indoors. The power divider and connector are N-K or F type, and the signal transmission line is 50 ohm-7 or 75 ohm-7 double-shielded coaxial cable.
Features
1、The repeater works with two antennas. One is the indoor antenna which communicates with your cell phone or laptop data card, and another one is the outdoor antenna which communicates with the cell tower.
2、The radiation is nearly zero, adopts good quality materials, which can effectively blocking radiation, no harm to human.
3、Adopts intelligent chip, which can enhance signals. Comprehensive and multidirectional coverage with strong penetration.
4、Reduces dropped and missed calls and provides stronger signal performance for multiple simultaneous users.
5、Compact size and beautiful appearance, space-saving and convenient to use.
Package Weight and Dimension
| Weight | 2.86 lb |
| Width | 7.8 Inch |
| Height | 5.85 Inch |
| Length | 18.72 Inch |
