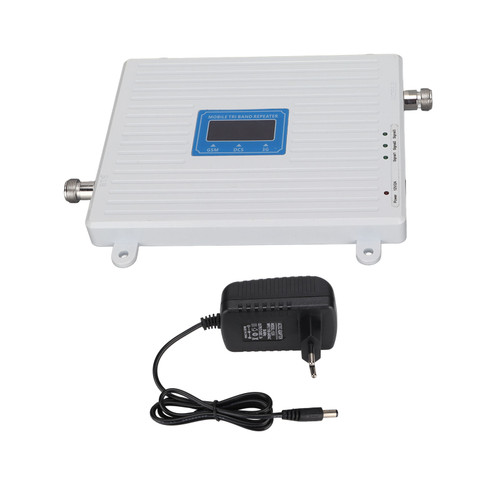

Cell Phone Signal Amplifier Multifunction Mobile Phone Signal Repeater with Antenna for Hotel Market Villa 110‑240VEU Plug

Item Type: Signal Amplifier
Material: Aluminum
Working Frequency:
The Upside: 824-849 MHZ
The Downside: 869-894 MHZ
Gain (dB) : Upstream Gp≥58 Downstream Gp≥63
Output Power (Po) : ≤21dBm±3dBm
Flatness: ≤3dB
Impedance: 50 Ω / N
Noise Coefficient: ≤4dB
Connection Type: N-female
Transmission Delay: ≤0.5μs
Ambient Temperature: -10 ° C to 60 ° C
EMC ETSI EN 301 489-1 V1.9.2
EMC ETSI EN 301 489-8 V1.2.1
Function Indicator A) Power Indicator (Digital Display Bar) B) Output Power Indicator (Digital Display Bar)
Coverage Area 100-1500 m2 (Large Area Requires Multiple Indoor Antenna Sets)
The Mobile Phone Shows Full Signal, Can Not Call the Solution:
A. This situation is caused by the insufficient uplink power of the amplifier or the weak signal of the outdoor antenna
B. Confirm that the distance between indoor antenna and outdoor antenna is more than 12 meters/39.4ft, and it is best to separate indoor and outdoor antenna with a wall
C. Confirm that there is mobile phone signal at the outdoor antenna end, and if the well reaches above (-50bm), whether the signal indicator scale is full.

Features

1、Superior Performance: All metal design, more stable performance, durable. Pure aluminum material, effectively block radiation, let the radiation close to 0.
2、Advanced Chip: The cell phone signal amplifier has intelligent chip, greatly increase the signal, wider coverage, comprehensive multi directional penetration.
3、Effective Improvement and Easy Installation: Improve the indoor electromagnetic environment, extend the battery life of phones. It's very simple to install
4、Applicable: Various frequencies are suitable for different countries and regions, all machines adopt automatic gain control, stable performance, covering an area of 100‑1000 square meters.
5、Wide Use: Wide range of use, the signal booster repeater is suitable for hotels, shopping malls, villas, duplex buildings, large family houses, etc.

Package List

1 x Host

1 x 10m/32.8ft Suction Cup Antenna

1 x Suction Cup Small Antenna

2 x Pen Antenna

1 x Instruction

1 x Power Adapter
