Coating Thickness Gauge High Accuracy Paint Film Meter Automotive Paint Thickness Detector

Item Type: Coating Thickness Gauge
Material: ABS
Model: SW-6310B
Battery: 850mAh 3.7V lithium battery (built in)
Uses: Suitable for major industrial workshops, laboratories, outdoor environments
Basic Parameter:
Measuring Range: Magnetic 0-1700μm, non magnetic 0-1700μm
Resolution: 0.1μm at(0-99μm), 1μm at（100-1700μm）
Indication Error: ±(2+2%xH)μm at(0-500μm), ±(2.5%xH) μm at(500-1700μm)
Minimum Measurement Interval: Magnetic 25x25mm, non magnetic 25x25mm
Minimum Curvature: Convex 5mm, concave 30mm
Minimum Substrate Thickness: Magnetic 0.2mm, non magnetic 0.05mm

Features

1、Function: This meter can accurately distinguish the properties of the substrate and the thickness of the covering layer through the magnetic and eddy current characteristics of the metal substrate
2、High Accuracy Probe: Adopt high accuracy probe, the gauge can accurately measure the thickness of the cover layer
3、Fast Measurement: The coating film gauge measures the thickness of the overlay quickly and without damage
4、Quality ABS Material: Made of high quality ABS material, this meter has high strength and hardness, strong impact resistance, sturdy and durable
5、Application: The coating thickness meter is suitable for industrial workshop, laboratory, outdoor environment, etc.

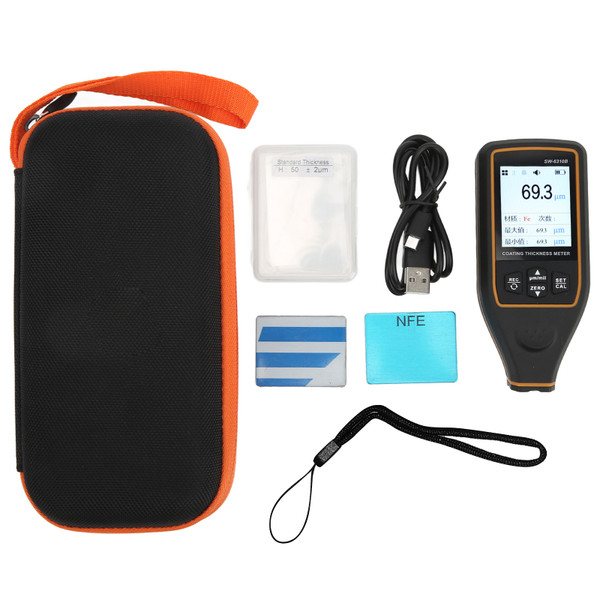

Package List

1 x Coating Thickness Gauge

1 x Manual

7 x Standard Accessories

1 x Carrying Box

1 x Lanyard

1 x USB Cable
