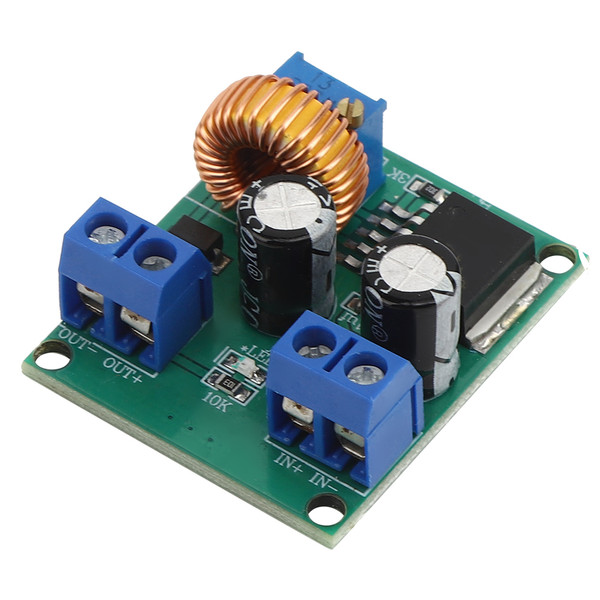

Product Overview
Condition: 100% Brand New
Item Type: Step-up Module
Color: As shown in the picture
Input: 3V-35V
Output: 4V-40V adjustable
Efficiency: 94% (maximum)
Working Temperature: -40 ℃-+ 85 ℃
Load Capacity: Maximum 80W
Wiring Method: The connection terminal is does not need to be welded, the "IN" is the input, and the "OUT" is the output.
Item Type: Step-up Module
Color: As shown in the picture
Input: 3V-35V
Output: 4V-40V adjustable
Efficiency: 94% (maximum)
Working Temperature: -40 ℃-+ 85 ℃
Load Capacity: Maximum 80W
Wiring Method: The connection terminal is does not need to be welded, the "IN" is the input, and the "OUT" is the output.
Features
1、When the output voltage is close to the input voltage, the carrying capacity is higher and the efficiency is higher
2、Made of high quality electronic component, good contact performance.
3、Wide input voltage, the best working voltage range is 3V-35V.
4、DC-DC boost converter module, the efficiency ratio is 94%, which is very high.
5、Reasonable component layout, easy to wire and use.
Package List
1 x Step-up Module
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 0.78 Inch |
| Length | 3.12 Inch |
