Product Overview

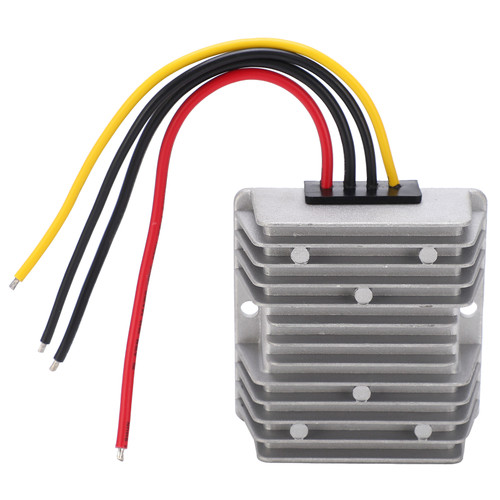

Item Type: DC to DC Converter
Material: Resin
Input Voltage Range: DC3V-30V (must ensure that the output voltage is higher than the input voltage)
Output Voltage Range: DC4.0V-36V
Maximum Input Current: 5A
Working Temperature: -40℃-85℃
Load Capacity: Maximum 80W
Module Size(LxWxH): Approx. 37 x 32 x 15mm / 1.5 x 1.3 x 0.6in
Continuous Working Current: 3A (good ventilation and cooling conditions, the ratio of output voltage to input voltage is not more than 3)
Material: Resin
Input Voltage Range: DC3V-30V (must ensure that the output voltage is higher than the input voltage)
Output Voltage Range: DC4.0V-36V
Maximum Input Current: 5A
Working Temperature: -40℃-85℃
Load Capacity: Maximum 80W
Module Size(LxWxH): Approx. 37 x 32 x 15mm / 1.5 x 1.3 x 0.6in
Continuous Working Current: 3A (good ventilation and cooling conditions, the ratio of output voltage to input voltage is not more than 3)
Features
1、Terminals are free of soldering, IN is input, OUT is output, easy for you to judge
2、DC to DC converter module possess long service life, easy assembly, very convenient
3、The product come with stable performance, long-lasting work, and wide application
4、Made of good‑quality resin material, possess environmental protection, heat resistance, low temperature resistance
5、The continuous working current is only 3A under good ventilation and cooling conditions, which is energy-saving
Package List
1 x DC to DC Converter
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 4.29 Inch |
| Height | 0.78 Inch |
| Length | 4.68 Inch |
