Product Overview
Features:
Specification:
Type: Non-isolated synchronous rectification automatically step up/down module
Input Current: 8A, (MAX) 10A, (within 6A for long-term work)
Constant Current Output Range: 0.2-10A
Operating Temperature: -40℃ to +85℃
Frequency: 150KHz
Conversion Efficiency: Typical 91%, maximum 93%
Over Current Protection: Yes
Short Circuit Protection: Yes (current limiting protection)
Reverse Input Protection: No, please connect to a diode in series at input if needed
Output Flow Back Protection: Yes, do not need to add the diode when used for charging.
Wiring Method: Terminal block output, (IN is input, OUT is output)
Weight: 70g / 2.5oz (approx.)
Package list:
1 * Module
Current Adjustment:
2, Rotate counterclockwise CC potentiometer about 30 circles, (i.e. the output current is set to minimum), connected to the LED, set CC potentiometer to required current.
If you use the module for battery charging, connect to output after battery is fully discharged. Adjust CC to required current. Because if the more energy is left in battery, the less charging current will be.
Please do not use short circuit to adjust current.
Specification:
Type: Non-isolated synchronous rectification automatically step up/down module
Input Current: 8A, (MAX) 10A, (within 6A for long-term work)
Constant Current Output Range: 0.2-10A
Operating Temperature: -40℃ to +85℃
Frequency: 150KHz
Conversion Efficiency: Typical 91%, maximum 93%
Over Current Protection: Yes
Short Circuit Protection: Yes (current limiting protection)
Reverse Input Protection: No, please connect to a diode in series at input if needed
Output Flow Back Protection: Yes, do not need to add the diode when used for charging.
Wiring Method: Terminal block output, (IN is input, OUT is output)
Weight: 70g / 2.5oz (approx.)
Package list:
1 * Module
Current Adjustment:
2, Rotate counterclockwise CC potentiometer about 30 circles, (i.e. the output current is set to minimum), connected to the LED, set CC potentiometer to required current.
If you use the module for battery charging, connect to output after battery is fully discharged. Adjust CC to required current. Because if the more energy is left in battery, the less charging current will be.
Please do not use short circuit to adjust current.
Features

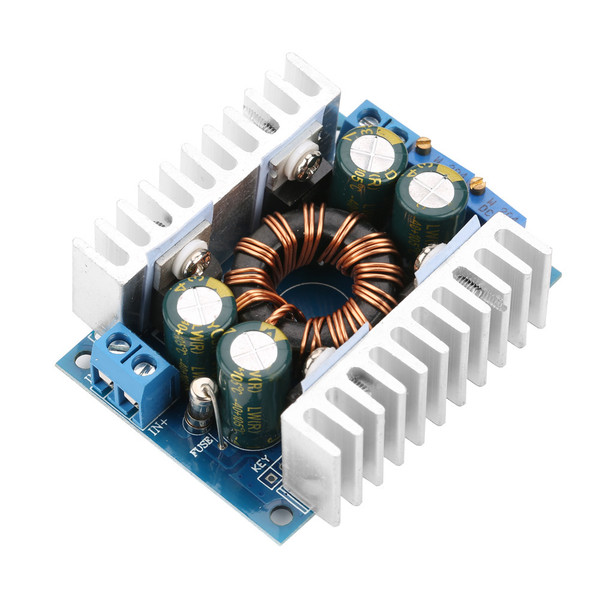

1、This is a non-isolated DC regulated power converter module with long service life.
2、High power and stable output, it converts 5-30VDC to 1.25-30VDC.
3、High quality components ensures high conversion efficiency, up to 93%.
4、It supports over current, short circuit, over temperature protection.
5、Designed with two heat sinks for better heat dissipation.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 1.95 Inch |
| Height | 0.78 Inch |
| Length | 2.34 Inch |
