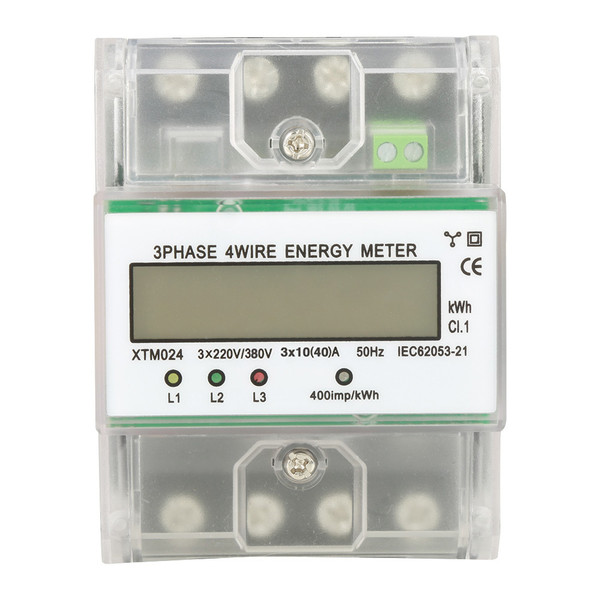

Digital LCD 3 phase 4 Wire Din Rail Electric Meter Electronic KWh Meter (10(40)A)

Features:
35mm standard DIN rail installation, complying with standard DIN EN50022.
Standard configuration 6+2 digits display by step motor impulse register.
It is a simple phase four module Din-Rail meter with transparent meter case, which is widely used in Sub-metering system.
This DIN-Rail Electric Meter features LCD backlight display
Specifications:
Model: XTM024
Accuracy: Class 1
Voltage: 3x230V/380V
Current: 5(30)A, 15(60)A, 10(40)A, 20(80)A, 30(100)A (Optional)
Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv
Size: as the picture
Weight: 410g
Package included:
1 x  DIN-Rail Electric Meter
1 x Manual
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Features

1、35mm standard DIN rail installation, complying with standard DIN EN50022.
2、Standard configuration 6+2 digits display by step motor impulse register.
3、It is a simple phase four module Din-Rail meter with transparent meter case, which is widely used in Sub-metering system.
4、This DIN-Rail Electric Meter features LCD backlight display
5、It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, and long life.
