Product Overview
Features:
Specifications:

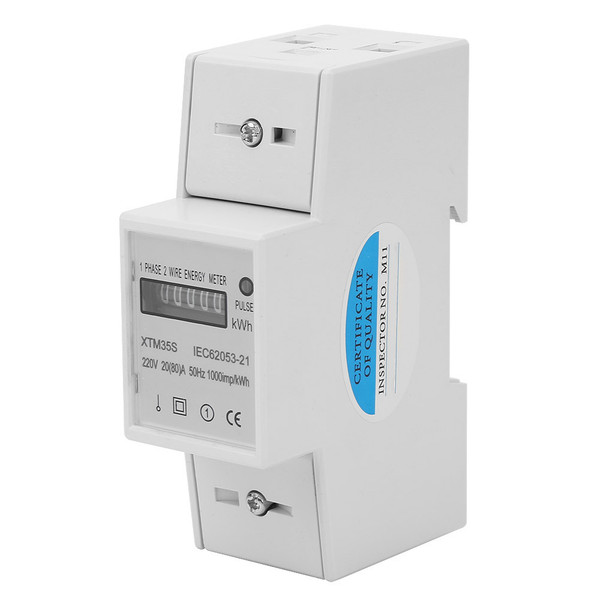

Model: XTM35S
Accuracy: Class 1
Current: 20(80)A
Size: 10*3.6*6.5cm/3.9*1.4*2.6in
Weight: Approx.160g/5.6oz
Package included:
1 x DIN-Rail Electric Meter
1 x Manual
Specifications:
Model: XTM35S
Accuracy: Class 1
Current: 20(80)A
Size: 10*3.6*6.5cm/3.9*1.4*2.6in
Weight: Approx.160g/5.6oz
Package included:
1 x DIN-Rail Electric Meter
1 x Manual
Features
1、35mm DIN standard rail mounted, conforming to Standards DIN EN 50022
2、Bipolar width, complying with standard DIN43880.
3、Can select the step motor impulse register of 5+1 digits (99999.1kWh) .
4、Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
5、Measure the active energy consumption in one direction on single phase two wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.95 Inch |
| Length | 4.68 Inch |
