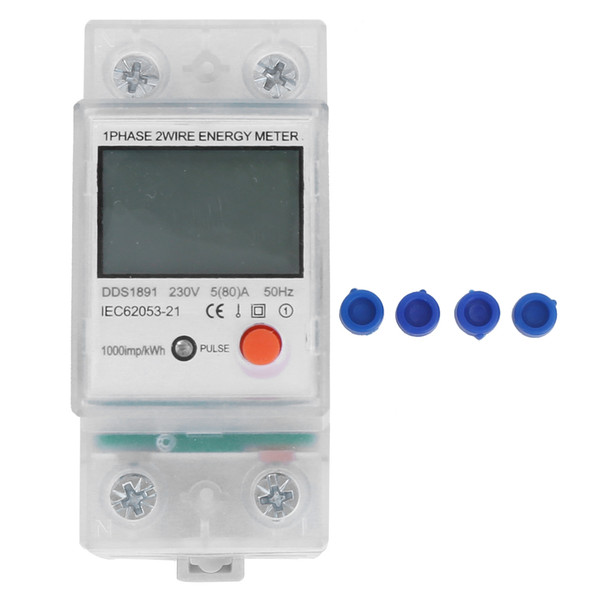

DDS1891 Single Phase 2P DINRail Electric Meter Energy Meter Electronic KWh Meter

Condition: 100% Brand New
Item Type: DIN‑Rail Electric Meter
Material: Plastic + Pure Copper
Product Description:
Features and scope of application:
DIN rail single-phase electronic watt-hour meter is a new type of single-phase full-electronic watt-hour meter, using the latest microelectronics technology and special large-scale integrated circuits, using digital sampling technology and SMT technology and other advanced technologies.
The meter full in line with the requirements of the national standard GB/T17215.321-2008 and the international standard IEC62053-21 (Class 1).
The meter is used to measure the active power consumption at a rated frequency of 50 Hz. It can accurately measure the functional consumption from the forward and reverse directions. It has the following characteristics: good reliability, small size, light weight, beautiful appearance and advanced technology.
The instrument is installed indoors. The site conditions are as follows: the ambient temperature is -25~+55°C, and the relative humidity does not exceed 95%. It will not produce strong corrosive gas, and will not be affected by dust, mold and insects.
Rated Voltage: 230V
Rated Current: 5 (80) A
Frequency: 50Hz
Pulse Constant: 1000imp/kwh

Features

1、Adopts the latest microelectronic technology and special large‑scale integrated circuits, and adopts advanced technologies such as digital sampling technology and SMT technology.
2、Good reliability, small size, light weight, beautiful appearance and advanced technology.
3、Can accurately measure the functional consumption from the forward and reverse directions.
4、DIN rail single‑phase electronic watt‑hour meter is a new type of single‑phase full‑electronic watt‑hour meter.
5、Used to measure the active power consumption at a rated frequency of 50 Hz.

Package List
