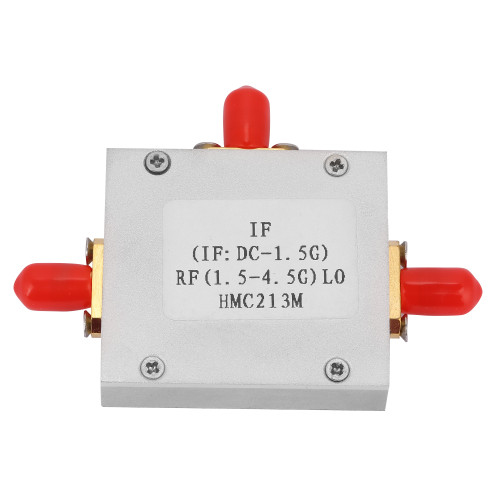

Double Balanced Mixer Module Microwave RF Mixing Transducer RFin=1.53.8GHz RFout=DC1.0GHz

Item Type: Double Balanced Mixer Module
Material: PCB
Purpose: Mixer
Power Supply: Passive mixer (no power supply required)
RF Input: 1.5-3.8GHz
Intermediate Frequency Output: DC-1.0GHz
Conversion Loss: 8.0dB
Noise Figure: 8.0dB (SSB)
Local Oscillator Input: +18dBm
Port Isolation:
Local Oscillator to RF: 38dB (typical)
Local Oscillator to Intermediate Frequency: 28dB (typical)
High Input 1P3: 18dBm
High Input P1dB: 8dBm
Connector Model: Standard SMA female
RF Input: RFin port
Local Oscillator Input: LOin port (recommended signal strength 13dBm)
IF Output: IFout port
Maximum Input Value of RF Local Oscillator: 22dBm
Maximum Input of Local Oscillator: 27dBm (0.5W)

Features

1、The interior is composed of double balanced microwave diodes, come with high reliability
2、Typical 38dB port isolation between local oscillator and RF, which is stable and reliable
3、Using 1.6mm thick PCB double sided board, sturdy and durable, come with long service life
4、The product have large heat dissipation area, possess stable operation and long running time
5、The conversion loss is only 8.0dB, and the noise figure is as low as 8.0dB (SSB). This is a passive device and does not require power supply

Package List

1 x Double Balanced Mixer Module
