Product Overview
Features:
Specification:
Shell material: CNC aluminum alloy

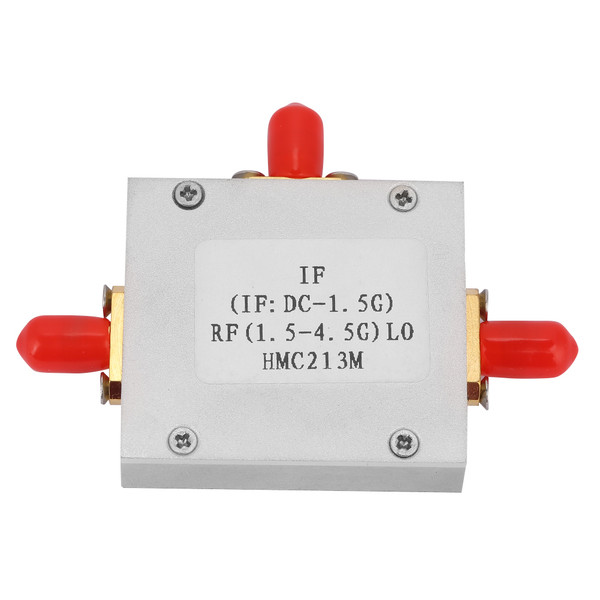

Model: HMC213 module
Conversion loss: 8.5db
LO to RF isolation: 40dB
LO to IF isolation: 35dB
Frequency range, RF and LO: 1.5-4.5G
Frequency range, IF: DC-1.5G
1dB gain compression (input) : 8dBm
IP3 (input) : 18dBm
Weight: Approx.46g/1.7oz
Package list:
1 x Passive Mixer
Specification:
Shell material: CNC aluminum alloy
Model: HMC213 module
Conversion loss: 8.5db
LO to RF isolation: 40dB
LO to IF isolation: 35dB
Frequency range, RF and LO: 1.5-4.5G
Frequency range, IF: DC-1.5G
1dB gain compression (input) : 8dBm
IP3 (input) : 18dBm
Weight: Approx.46g/1.7oz
Package list:
1 x Passive Mixer
Features
1、Passive double-balanced mixer, 8-pin surface-mount plastic package (MsOP).
2、Passive mixers use GaAs Schottky diodes and novel planar transformer on-chip balun structures.
3、It can be used as up-converter, down-converter, two-phase modulator and demodulator or phase comparator.
4、The mixer has the advantage of high isolation
5、The passive mixers adopt mini components design,compact and light weight
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 2.34 Inch |
| Height | 0.78 Inch |
| Length | 3.12 Inch |
