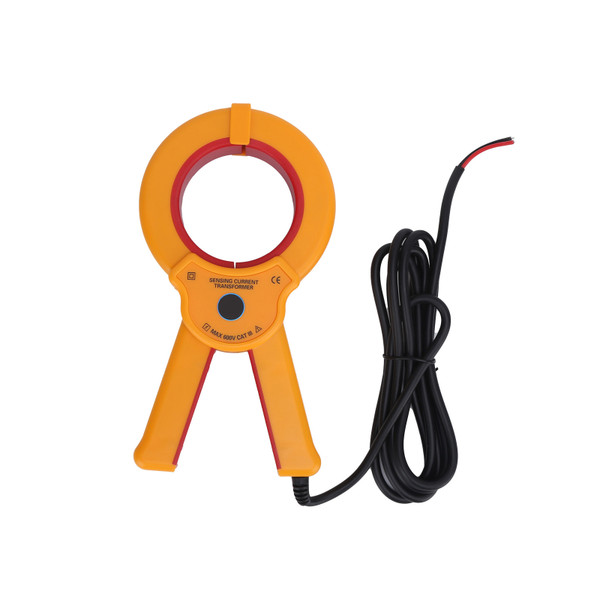

ETCR070A AC Current Transformer R Type Clamp Current Sensor for Industry Electrical MeasurementETCR070A-2

Item Type: Clamp Current Transformer
Model: ETCR070A
Material: ABS+silicon steel
Application: Industrial control devices, oscilloscopes, harmonic analyzers, double clamp ground resistance testers, cable fault testers, power quality analyzers
Input Current Range: 0A~1000A
Output Signal: 1A, 5A
Jaw Size: Approx. 70mm / 2.8in
Safety Grade: CATⅢ600V
Environmental Protection: RoHS
Working Temperature: -15°C~60°C

Features

1、The product can be used for industrial power testing such as AC current, high order harmonic current, phase, electric energy, power factor, ect.
2、Using CT technology, and with circular large diameter structure design, easy to carry, easy to install.
3、This product adopts silicon steel core, it is more accurate to test large current, small in size and easy to use.
4、Clamp shaped structure, no need to disconnect the tested circuit, simple and fast operation, safe and reliable.
5、This product is a high accuracy AC current transformer, which is widely used in industry and power measurement, and can meet your different needs.

Package List

1 x Clamp Current Transformer
