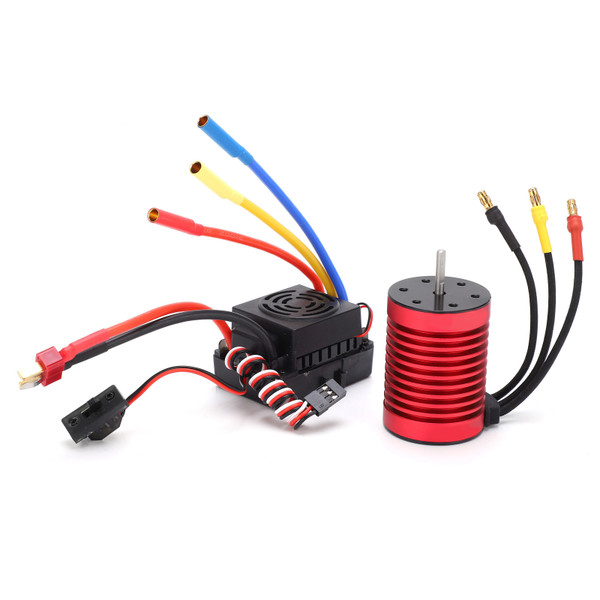

F540 Brushless Motor 3900KV and 60A Brushless ESC Set with T Plug for 1/10 Remote Control Cars

Item Type: 540 Motor+ESC Set
Material: Aluminum Alloy+Plastic
Motor:
Color: Red
Motor Size: Approx. 50x36mm/2x1.4in
Maximum Current: 60A
KV(RPM/Volt): 3900KV
Maximum Revolving Speed: 50000
Shaft Length: Approx. 15mm/0.6in
Shaft Diameter: Approx. 3.2mm/0.1in
ESC:
Sustained Current: 60A
Peak Current: 320A
Suitable Battery: 2-3S Li-Po/4-9S Ni-Mh Ni-Cd (Not included)
BEC Output: 5.8/3A
Compatibility: for 1/10 RC Car
Weight: Approx. 229g/8.1oz

Features

1、4‑pole 12‑slot high‑torque motor design and high‑purity copper winding can maximize the efficiency.
2、Precision design for maximum energy conversion, conserve energe, and provide longer use time.
3、Precision balanced rotor, smoothness, best reliability and has maximum RPM. Support program card adjustment.
4、Enhanced throttle response, excellent acceleration, strong braking and throttle linearity.
5、Waterproof and suitable for various competitions conditions, low voltage cut‑off protection, overheat protection, and throttle signal loss protection.

Package List

1 x Brushless Motor

1 x Brushless ESC

1 x Instruction
