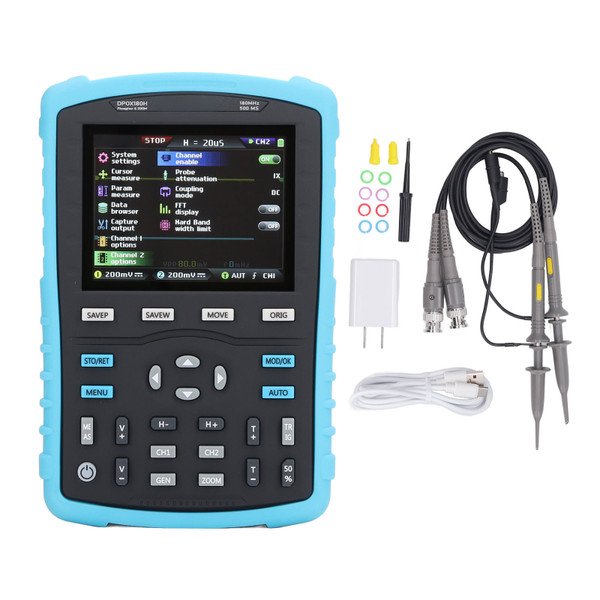

Fluorescent Digital Oscilloscope 2.8in Display 3000mAh Dual Channel Signal Generator Oscilloscope 100‑240V

Item Type: Digital Oscilloscope
Material: ABS
Number Of Channels: 2
Analog Bandwidth: 180MHZ
Maximum Sampling Rate: 500MSPS
Input Plowshare: DC Or AC
Rise Time: 2.5nS
Storage Depth: 120Kpts
Input Impedance: 1MΩ-18PF
Vertical Sensitivity: 5mV-10V(1X)
Time Base Range: 5nS-50S
DC Accuracy: ±2%
Time Accuracy: ±0.01%
Trigger Detection: Digital Trigger
Trigger Mode: Automatic, Single, Conventional
Trigger Edge: Rising Edge, Falling Edge
Test Range: 40mV-80V(1X)
Cursor Measurement: Frequency, Period, Amplitude
Screen Storage: 90 Sheets
Waveform Storage: 250 Groups
Intercepted Waveform Signal: 500
Parameter Measurement: 12 Kinds
Signal Generator: 14 Kinds Of Standard Function Signals
Digital Yu Fluorescence Technology: Support
Color Temperature Display Technology: Support
Scrolling Mode: Support
XY Mode: Support
ZOOM Scaling Time Base: Support
20M Hardware Bandwidth Limit: Support
Adjustable Auto Bandwidth Limit: Support
Auto Adjustment: Support
Waveform Manager: Support
Truncated Waveform Excluder: Support
Screen Size: 2.8 Inches
Screen Resolution: 320 x 240
Display Process: IPS Full View
Expansion Interface: USB Transmission Interface
Auto Shutdown: 5 Minutes - 2 Hours
Firmware Upgrade: Support For IOS Image Upgrade
Charging Requirements: 5V 2A
Power Supply: Built In Battery Battery Capacity 3000mah (Shipped With Built In Battery)

Features

1、2 Channel and High Bandwidth: This oscilloscope adopts 2 channel and high bandwidth of 120MHz. And the analog bandwidth is 180MHz. Can easily cope with various fields of measurement testing. Can be used for chip debugging, automobile maintenance, home appliance maintenance, DIY debugging.
2、FFT Spectrum and Cursor Measurement: This oscilloscope adopts FFT displaying spectrum and cursor measurement, can analyze the spectrum characteristics of the signal. Cursor measurement function, convenient manual measurement period, frequency and voltage.
3、3 Trigger Modes: Digital oscilloscope has three trigger modes, automatic, normal, single trigger. Support waveform parameter setting, such as time base, amplitude, trigger slope, etc. Support waveform 1 click automatic adaptation screen.
4、Signal Generator: The bottom of the oscilloscope can output sine wave, squareness wave, triangular wave, half wave, etc. The frequency adjustment range of sine wave is 0‑10MHz, and the frequency range of other waveforms is 0‑2MHz. The accuracy can be 0.1Hz.
5、14 Measurement: There are 14 measurement of this oscilloscope available. Frequency, P to pixel, duty cycle, amplitude, RMS, mean, period, +pulse width, ‑pulse width, maximum, minimum, top, base.
6、ARM and FPGA Chip: This handheld oscilloscope uses ARM and FPGA chip to provide high speed signal acquisition and high speed data processing.

Package List

1 x Oscilloscope

2 x Probe Line

2 x Instruction Manual

1 x Charging Plug

1 x USB Cable

11 x Accessories
