Product Overview

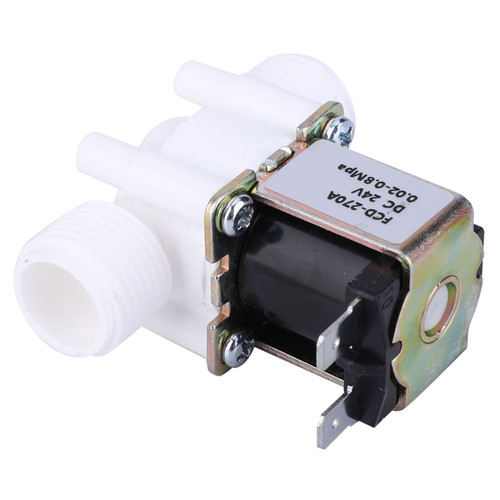

Item Type: Electric Solenoid Valve
Material: Nylon, stainless steel
Thread Interface: G1/4
Water Valve Type: Normally closed water inlet valve
Operating environment altitude does not exceed 2500 meters; atmospheric pressure is 86~106KPa
Ambient Temperature: +1℃~+45℃; Water Temperature: 0℃~ +100℃; Storage and Transportation Temperature: -30℃~ +60℃
Protection Grade: IP00
Relative Humidity: ≤95%
Inner Diameter/Outer Diameter: Approx. 9mm / 0.4in, 13mm / 0.5in
Working Pressure: 0.02~0.8MPa
Thread Length: Approx. 12mm / 0.5in
Coil Resistance: 27.7Ω
Material: Nylon, stainless steel
Thread Interface: G1/4
Water Valve Type: Normally closed water inlet valve
Operating environment altitude does not exceed 2500 meters; atmospheric pressure is 86~106KPa
Ambient Temperature: +1℃~+45℃; Water Temperature: 0℃~ +100℃; Storage and Transportation Temperature: -30℃~ +60℃
Protection Grade: IP00
Relative Humidity: ≤95%
Inner Diameter/Outer Diameter: Approx. 9mm / 0.4in, 13mm / 0.5in
Working Pressure: 0.02~0.8MPa
Thread Length: Approx. 12mm / 0.5in
Coil Resistance: 27.7Ω
Features
1、Water inlet controller has stable performance, sturdiness and durability, safety and reliability
2、Electric solenoid valve come with high sensitivity, quality assurance, and beautiful appearance, very practical
3、Come with direct‑acting diaphragm structure, no pressure start, expanding its application field
4、Adopt normally closed inlet valve with threaded interface design, possess simple and convenient installation
5、The normal operation is not less than 200,000. Imported stainless steel springs and good‑quality materials are used
Package List
1 x Electric Solenoid Valve
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.51 Inch |
| Height | 1.95 Inch |
| Length | 5.46 Inch |
