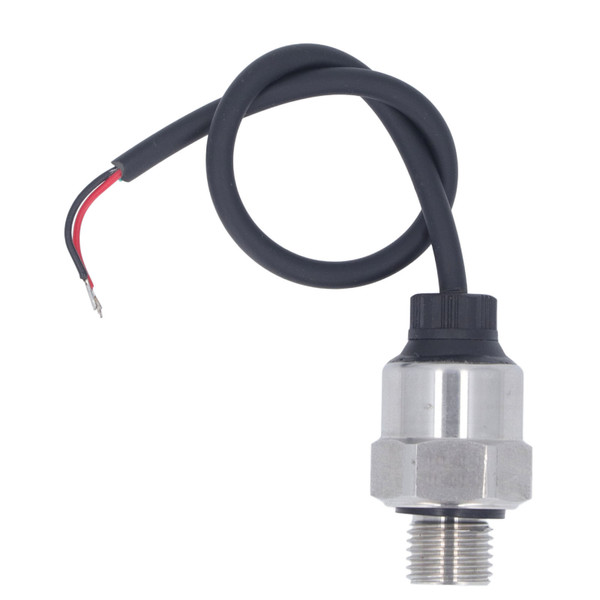

G1/4 Pressure Transducer 0‑2Mpa 4‑20mA Output Signal Current Type Pressure Transmitter for Oil Fuel Water 10‑30V

Item Type: Pressure Transducer
Material: Stainless Steel, Ceramic
Output Signal: 4-20mA (linear voltage output)
Thread: G1/4
Response Time: <2ms
Accuracy: Within 2% of the reading (full scale)
Product Supply Voltage: 10-30V
Rated Pressure Range: 0-2Mpa
Failure Pressure: 3 times rated pressure
Overload Pressure: 2 times rated pressure
Operating Temperature: -40℃ to 125℃

Features

1、VERSATILE APPLICATIONS: The pressure transmitter is widely used in oil tanks, gas tanks, and fuel tanks to detect oil, fuel, gas, water, or air pressure.
2、HIGH SENSITIVITY: The pressure transducer has a small output error of ±2%FS across the entire temperature range, providing high sensitivity and accuracy.
3、DURABLE CONSTRUCTION: The threaded pressure transmitter features a stainless steel body and premium ceramic pressure chip, ensuring durability and long lasting performance.
4、EASY INSTALLATION: The pressure transmitter is lightweight, compact, and easy to install, making it convenient for various applications.
5、SAFETY FEATURES: The stainless steel pressure transmitter is equipped with complete surge voltage protection, ensuring safe operation in various conditions.

Package List

1 x Pressure Transducer
