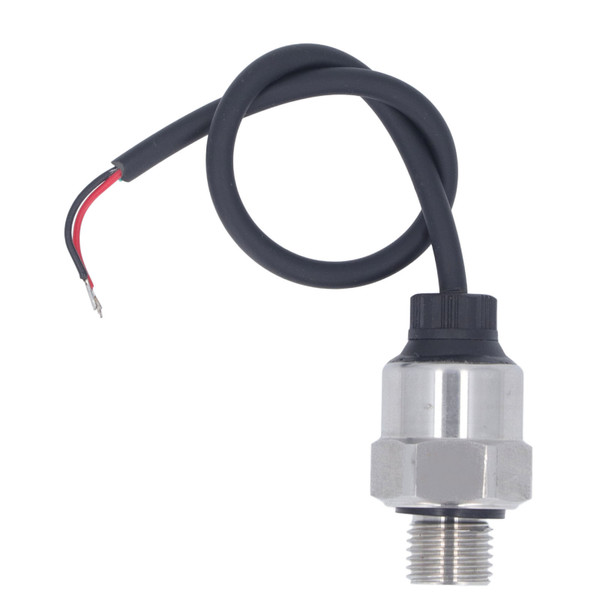

Pressure Transmitter G1/4in 4‑20mA Output 0‑0.5Mpa Range Pressure Transducer Sensor for Oil Fuel Gas Water 10‑30V

Item Type: Pressure Transmitter
Material: Stainless Steel, Ceramic
Output Signal: 4-20mA (Linear Current Output)
Thread: G1/4
Response Time: <2ms
Accuracy: Within 2% of Reading (Full Scale)
Power Supply Voltage: 10-30V
Rated Pressure Range: 0-0.5Mpa
Breaking Pressure: 3 Times The Rated Pressure
Overload Pressure: 2 Times The Rated Pressure
Operating Temperature: -40℃ to 125℃

Features

1、[4 to 20mA Output] This pressure transducer sensor adopts current type signal output of 4 to 20mA, with a rated pressure range of 0 to 0.5Mpa, suitable for a variety of applications.
2、[Accurate and Responsive] With ±2%FS small output error, quick response time of less than 2ms, the pressure transmitter accurately and quickly detects pressure changes.
3、[Surge Voltage Protection] This pressure sensor comes with complete surge voltage protection function, ensuring safe usage and reliable operation.
4、[Sturdy Construction] Built to withstand harsh industrial environments, the pressure transducer is made with stainless steel and ceramic chip for long lasting performance.
5、[Versatile Applications] Widely used in oil tank, fuel tank, gas cylinder, this pressure sensor is perfect for detecting pressure in oil, fuel, gas, water, or air systems.

Package List

1 x Pressure Transmitter
