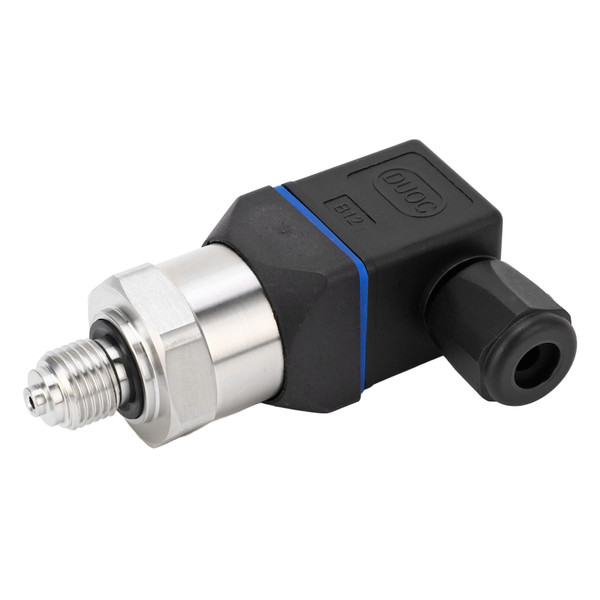

Pressure Transducer 0‑40Mpa Small Output Error G1/4in Pressure Transmitter for Oil Fuel 0.5‑4.5V

Item Type: Pressure Transducer
Material: Stainless steel
Rated Pressure Range: 0-40Mpa
Overload Pressure: 1.5 times rated pressure
Destruction Pressure: 3 times rated pressure
Response Time: <2ms
Operating Temperature: -40℃-125℃
Accuracy: Within 2% of reading (full scale)
Thread: G1/4in
Media Compatibility: Refrigerant, clean non corrosive oil, gas and water, etc.
Wiring Connector: Water sealed quick disconnect. Includes mating connector (standard Packard Metri pack connector) and wiring harness (pigtail).
Wiring: Red positive 5V. Black for ground. (sometimes green) blue for signal output

Features

1、Surge Protection: Our pressure transmitters are fully protected against surge voltage, preventing transient over current damage to the pressure transmitter.
2、Small Output Error: Our pressure transmitters have an output error of ±2% FS, including nonlinearity, return and repeatability, over the full temperature range.
3、Perfect Replacement: Our pressure transmitters are very compatible and are a perfect replacement for mechanical sensors.
4、Easy to Install: Our pressure transmitters are light weight, small in size, easy to install and operate, and easy to use.
5、Stable Performance: Our pressure transmitters are wear free, stable, with little long term drift and long service life.

Package List

1 x Pressure Transducer
