Product Overview

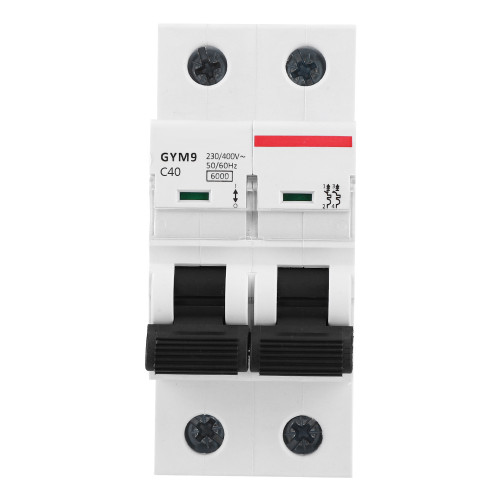

Item Type:Circuit Breaker
Maximum Wiring Capacity:35mm
Wiring Torsion:3.5N.m
Protective Level:IP20
Pole:2P
Rated Frequency : 50/60Hz
Rated Sensitivity I△N : 0.3A
Rated Residual On-Off Capability Im: 500 (In=25-40A) 630 (In=63A)
Short Circuit Current Lnc=L△C : 10000A
Disconnect Time I△N : ≤0.1S
Electrical Life And Mechanical Life : 4000
Set The Reference Temperature Of The Thermal Element : 30 ° C
Ambient Temperature (Daily Average ≤ 35 ° C): -5~+40 °C
Storage Temperature : -25~+70°C
Maximum Wiring Capacity:35mm
Wiring Torsion:3.5N.m
Protective Level:IP20
Pole:2P
Rated Frequency : 50/60Hz
Rated Sensitivity I△N : 0.3A
Rated Residual On-Off Capability Im: 500 (In=25-40A) 630 (In=63A)
Short Circuit Current Lnc=L△C : 10000A
Disconnect Time I△N : ≤0.1S
Electrical Life And Mechanical Life : 4000
Set The Reference Temperature Of The Thermal Element : 30 ° C
Ambient Temperature (Daily Average ≤ 35 ° C): -5~+40 °C
Storage Temperature : -25~+70°C
Features
1、Bilateral busbar wiring capability to accommodate a wider range of uses.
2、Maximum connection capacity 35mm, wiring torsion 3.5N.m, suitable for various installation equipment.
3、Wiring is stronger and thus works more stable.
4、In case of electric shock or grid leakage current exceeding a fixed value, the power can be cut off. In order to protect people and equipment, fault currents in a short time can also be used for infrequent starting of circuits and motors.
5、The circuit breaker is suitable for industrial, commercial, high-rise buildings, homes and other places.Comply with IEC/EN61008.1
Package List
1 x Circuit Breaker
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.56 Inch |
| Length | 3.51 Inch |
