Product Overview

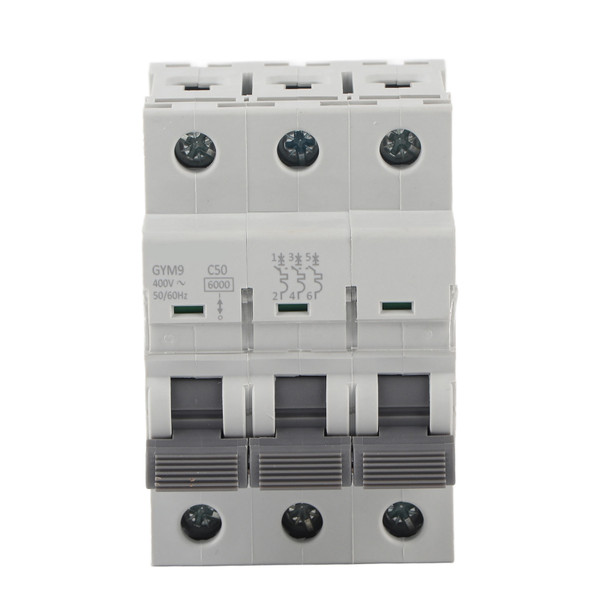

Item Type:Circuit Breaker
Maximum Wiring Capacity:25mm
Wiring Torsion:3N.m
Rated Input Current:40A 50A 63A(Optional)
Pole:3P
Rated Voltage Ue : 400VAC
Insulation Voltage Ui : 500V
Rated Frequency : 50/60Hz
Rated Breaking Capacity: 4500/6000A
Rated Impulse Withstand Voltage (1.2/50) Uimp : 6kV
Insulation Test Voltage (Within 1 Minute): 2kV
Pollution Level: 2
Thermal Magnetic Release Characteristics: B C D
Electrical Life: 4000
Mechanical Life: 10000
Degree of Protection: IP20
Set The Reference Temperature of The Thermal Element: 30℃
Ambient Temperature (Daily Average ≤ 35 ° C): -5 ~ +40℃
Storage Temperature: -25~+70℃
Maximum Wiring Capacity:25mm
Wiring Torsion:3N.m
Rated Input Current:40A 50A 63A(Optional)
Pole:3P
Rated Voltage Ue : 400VAC
Insulation Voltage Ui : 500V
Rated Frequency : 50/60Hz
Rated Breaking Capacity: 4500/6000A
Rated Impulse Withstand Voltage (1.2/50) Uimp : 6kV
Insulation Test Voltage (Within 1 Minute): 2kV
Pollution Level: 2
Thermal Magnetic Release Characteristics: B C D
Electrical Life: 4000
Mechanical Life: 10000
Degree of Protection: IP20
Set The Reference Temperature of The Thermal Element: 30℃
Ambient Temperature (Daily Average ≤ 35 ° C): -5 ~ +40℃
Storage Temperature: -25~+70℃
Features
1、Bilateral busbar wiring capacity to accommodate a wider range of uses.
2、Maximum connection capacity 25mm, wiring torsion 3N.m, suitable for various installation equipment.
3、Mainly used for AC 50Hz/60Hz, double voltage 400V, rated current 1A ~ 63A overload and short circuit protection, can also be used for non‑frequent switching operation under normal conditions.
4、In accordance with IEC/EN60898-1, the indicator function is in contact position.
5、Transparent cover designed to carry labels.
Package List
1 x Circuit Breaker
Package Weight and Dimension
| Weight | 0.73 lb |
| Width | 3.12 Inch |
| Height | 3.12 Inch |
| Length | 3.12 Inch |
