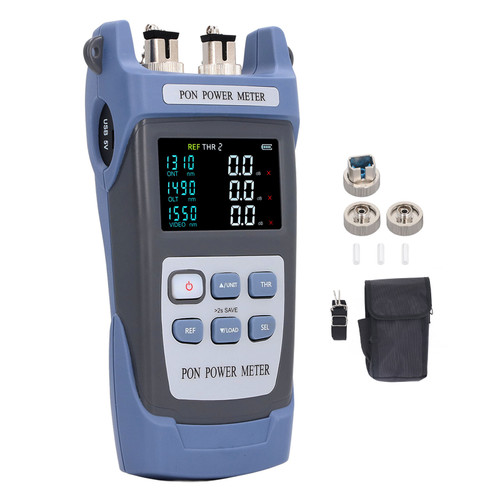

Handheld LCD Optical Power Meter PON Network Detector Fiber Optic Power Tester UPC Port

Item Type: Optical Power Meter
Model: AUA 320U
Material: ABS
Display: Color LCD Screen
Detector Type: For InGaAs
Fiber Type: SM9 125μm
Data Storage: 10
Data Interface: Micro USB
Power Supply Mode: 3 x AA batteries required, and can also be used with an external power supply (USB 5V port), not rechargeable! (not included battery)
Wavelength: 1310nm, 1490nm, 1550nm can be tested at the same time
Testable Connectors: SC FC connectors

Features

1、3 WAVELENGTHS: Handheld PON optical power meter, can test 1310nm, 1490nm, 1550nm wavelengths at the same time, convenient and reliable.
2、TEST INTERFACE: Support FC SC interface adapter, and with USB interface, which can be connected to external power.
3、MULTIPLE FUNCTIONS: Support data storage, auto power off, backlight selection, auto calibration, user calibration, threshold setting, has multiple functions.
4、LCD DISPLAY: The optical power meter adopts color LCD display screen design, the test results are clear at a glance, and it supports 10 data storage.
5、COMPACT SIZE: The optical fiber power tester has compact structure, simple button interface, simple operation and has a wide application range.

Package List
