Handheld Oscilloscope 120MHz Waveform Bandwidth High Accuracy 2.4in TFT Digital Color Analog Oscilloscope Kit

Item Type: Handheld Oscilloscope
Material: ABS

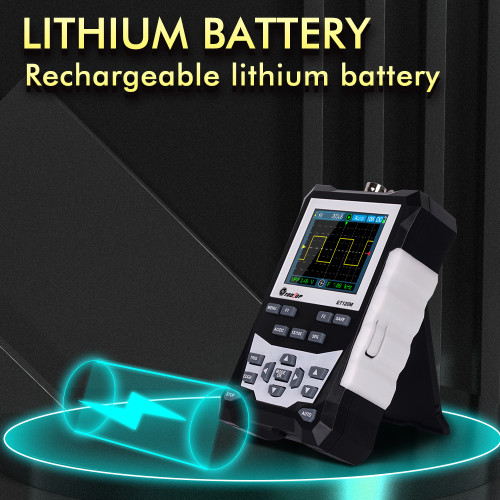

Battery: Lithium Battery 3.7V 1200mAh (With Built In Battery)
Applications: Appliance Testing, Automotive Diagnosis, Scientific Research And Education, Product Development, Equipment Debugging
Basic Parameters
Screen Size: 2.4 Inch Color Screen
Screen Resolution: 320x240
Display Technology: TFT
Waveform Bandwidth: 120MHz
Equivalent Maximum Sampling Rate: 500MSa / S
Storage Depth: 12.8div
Input Impedance: 1MΩ
Vertical Sensitivity: 50mV To 100V
Time Base Range: 6nS To 50S
Trigger Mode: Auto, Normal, Single
Trigger Edge: Rising, Falling Edge
Signal Source Output: IkHz, 10kHz, 100kHz, 1MHz

Features

1、Independent Parameter Setting: The oscilloscope can independently set parameters during waveform measurement, such as time base, amplitude, waveform scan mode, etc.
2、Automatic Mode: The oscilloscope can collect signals continuously, regardless of whether the trigger conditions are met or not. Set parameters sensitivity, trigger edge.
3、120MHz Waveform Bandwidth: Handheld oscilloscope 12 measurement functions, 120MHz waveform bandwidth, relative value measurement can effectively eliminate leading resistance, distributed capacitance or interference signals.
4、Applicable Scenarios: Handheld oscilloscope is suitable for home appliance testing, automotive diagnosis, research and education, product development, and equipment debugging.
5、3 Waveform Scan Modes: The one touch oscilloscope has three waveform scan modes, auto, normal, and single. The data waveform hold function during measurement can store 100 sets of data and 10 waveforms.

Package List

1 x Oscilloscope

1 x Oscilloscope Pen

11 x Accessories

2 x Instruction Manual

1 x USB Cable

1 x Storage Bag
