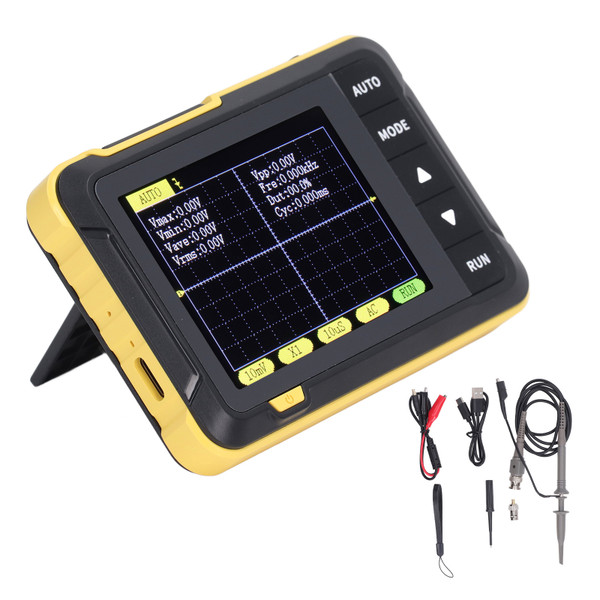

Handheld Oscilloscope Analog Digital Signal Portable Oscillograph Meter 200K Bandwidth 2.5MS/s Sampling Rate

Item Type: Oscillograph
Model: DSO152
Sampling Rate: 2.5MS/s
Coupling Method: AC DC
Bandwidth: 200K
Display: 2.8in, PP1: 320 x 240
Vertical Sensitivity: 10mV/Div-20V/Div (in steps of 1-2-5)
Time Base Range: 10uS/Div-50s/Div (in steps of 1-2-5)
USB Charging: 5V 1A
Voltage Range: x1: ±40V (Vpp: 80V), x10: ±400V (Vpp: 800V)
Power Supply: 1000mAh Lithium Battery (built in battery)
Calibration Square Wave:
Frequency: 1K
Duty Cycle: 50%
Trigger Method: AUTO, Normal, Single

Features

1、MULTIPLE FUNCTIONS: This oscillograph has a real time sampling rate of 2.5MS/s, a bandwidth of 200kHz, complete triggering function (single, normal, automatic).
2、MEASURING SIGNAL: Whether it is for periodic analog signals or non periodic digital signals, it can be used freely, and can measure voltage signals up to ±400V.
3、WAVEFORM DISPLAY: Supports one key AUTO, can display the measuring waveform without complicated adjustment, with a 1KHz calibration square wave.
4、POWER SUPPLY: This handheld oscillograph is equipped with 1000mAh lithium battery and supports 5V 1A USB charging to ensure long endurance.
5、CLEAR DISPLAY: The digital oscillograph has a compact size with a 2.8in screen, which is clear and intuitive, greatly improving measurement efficiency.

Package List
