Industrial Microscope Camera 2K 48MP HD Electronic Eyepiece with 150X C Mount Lens LED Light and Bracket AC100‑240V EU Plug

Item Type: Industrial Microscope Camera
Material: Aluminum Alloy, ABS
Model: HY 2307
Remote Control Battery: 1 x CR2025 150mAh Button Battery (Built in)
Sensor: 48MP CMOS
Sensor Size: 1/2.9 Inch
Pixel Size: 1.335μm x 1.335μm
Interface: HD (Type A), USB (Type B), Small Storage Card
Image: 48MP (8000x6000), 16MP (4K: 4680x3456)
Video Resolution: 2K, 30FPS, 1080p, 60FPS
HD Resolution: 1920x1080p 60FPS
HD Ratio: Support 4:3, 16:9, 16:10 Screen
USB 2.0 (Drive Free): 1920x1080, 30FPS, 1280x720, 30FPS, 640x480
Storage Card: Maximum 128GB (No Card Included)
AWB: AWB Color Correction, Auto, Manual
R.G.B Value: R.G.B Value Independent Setting
Exposure: Auto Manual, AE Value Can Be Set
Crosshair: 8 Lines, Colors, Widths, Positions Can Be Set
Scale Lines: 2 Lines
Dotted Lines: 2 Lines, Colors, Widths, Positions Can Be Set
Clarity Contrast Color Gain: Support
Monochromatic Negative: Support
Flip: Horizontal and Vertical
Language: Chinese, English, Japanese, French, German, Russian, Italian, Korean, Turkish
Digital Zoom: Support
Remote Control: Support
Operating System Support: for Windows XP SP3, for Windows 7, for Windows 8, for Windows 10
1-150X Magnification C Mount Lens:
Working Distance: 50-1000mm
Magnification Rate: 1:15
Magnification: 0.15-2X (About 1-150X on Screen)
Maximum Field of View: 4.2 x 2.4mm
Minimum Field of View: 130 x 70mm
56 Type LED Light:
Light Color: White
Lifespan: 100000 Hours
Shadowless Illumination: Intense and Focused
Brightness Adjustment: 0-100% Adjustable, Variable Strength Control
Applicable Lens Diameter: Approx. 30-63mm/1.18-2.48in
Best Working Distance: 400mm

Features

1、[HD Microscope Camera] This industrial camera has built in 48MP high definition image sensor, offering 2K video recording, makes observation easier and more fun.
2、[150X C Mount Lens] Featuring flexible working distance from 50mm to 1000mm, magnification range from 0.15 to 2X (about 1 to 150X on screen), maximum field of view 4.2mmx2.4mm, minimum field of view 130mmx70mm.
3、[Adjustable Stand] The head can be adjusted up and down 220°, rotating 360°. 35cm and 35cm extendable long arm is adjustable 180° and 135°. Metal clamp can be fixed to any surface less than 5cm thick. Saves space, easily connects to a desk or workbench.
4、[White LED Light] Providing 100000 hours ultralong lifespan, strong and focused shadowless illumination, 0 to 100% brightness adjustment. Suitable for 30mm to 63mm diameter lenses, the best working distance is 400mm.
5、[Support Systems] This HD microscope camera features completely free software, which is widely compatible with for Windows XP SP3, for Windows 7, for Windows 8, for Windows 10.
6、[Easy to Use] When connecting the electron microscope to a computer, simply plug in USB cable and operate. USB output will be stored in the computer. For USB output, software operations such as white balance, exposure, and color adjustment can be adjusted, supports photography and video recording, precise measurement, computer hard drive data storage, grid lines.
7、[More Features] Add layers, watermarks, mosaics, tiles; Adjust color balance, exposure, saturation, contrast, and direction; Change resolution, histogram, graining, diffusion; Transform images through edge detection and digital image distortion; Measure single, parallel or vertical lines, as well as rectangular, elliptical, and irregular areas; Add annotations, measurements, text, arrows, labels, etc. using custom text of different sizes and colors; Measure in micrometers, millimeters, centimeters, inches, feet, etc. at any magnification with the required tolerance.

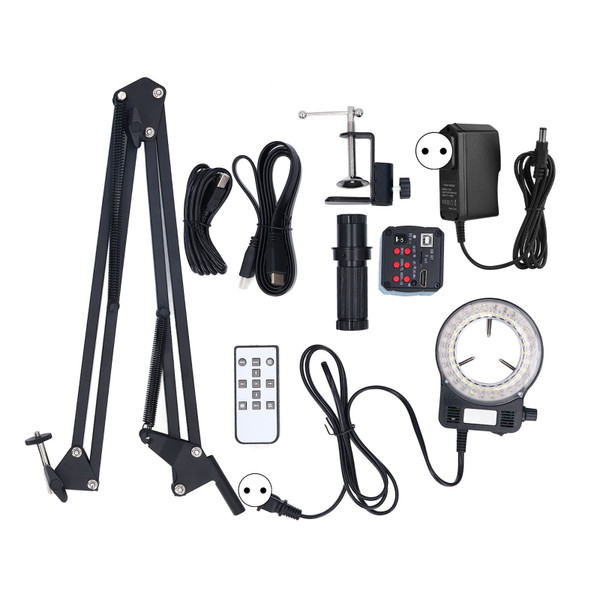

Package List

1 x Industrial Microscope Camera (Storage Card Not Included)
1 x Industrial Microscope Camera User Manual

1 x Industrial Microscope Camera Remote Control

1 x Power Adapter
1 x USB Cable
1 x HD Cable
1 x 150X C Mount Adapter Lens
1 x 56 Type LED Light
1 x Support Arm
1 x Base Stand
