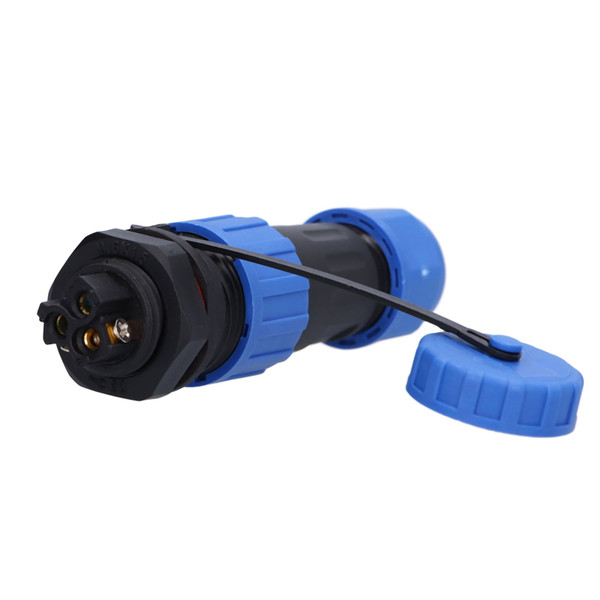

IP68 Waterproof Aviation Plug Socket Set LP16 3Pin Weld Free Back Nut Type Male Female Butt Terminal 10A

Item Type: Aviation Plug Socket
Material: PA66 + PPS + Silica Gel + Gold-Plated Copper + PA6
Uses: Widely used in communication equipment, instrumentation, computers, program-controlled machines, alarms and bridge electronic equipment, etc.
Shell Material: PA66 + PA6
Insulator Material: Thermoplastic PPS (high temperature resistant 220℃)
Contact Material: Copper (gold-plated)
Wiring Method: Screw (not included) crimping
Connection Method: Threaded Connection
Head Size: Approx. 16mm/0.6in
Insulation Resistance: 2000MΩ
Core Quantity: 3 cores
Contact Diameter: Approx. 1.8mm/0.1in
Copper Pin Applicable Cable: 0.2-2.5mm²
Applicable Current: 10A
shell Applicable Cables: Φ6-12mm²
Applicable Panel Thickness: Approx. 0.1-4mm/0.004-0.2in
Mating Times: More than 500 times
Operating Temperature Range: -25℃ to 85℃
Tightness: Comply with IP68

Features

1、Application: Widely used in communication equipment, instrumentation, computers, program‑controlled machines, alarms, bridge electronic equipment, etc.
2、Welding Free Installation: Using screw (not included) crimping method, only a screwdriver (not included) can complete the installation, simple and fast.
3、IP68 Waterproof: There is a silicone waterproof cover at the line of the shell, which is tight and waterproof.
4、Solid Pins: Plug‑in resistance, constructed from gold‑plated copper, more anti oxidation, have a long service life.
5、PA66 PA6 Shell: The shell features good corrosion resistance and flexibility, and will not crack due to low temperature.

Package List

1 x Plug

1 x Socket
