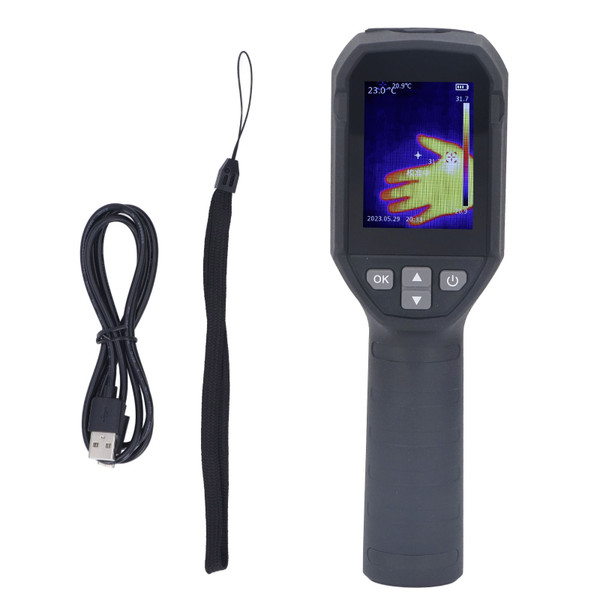

IR Infrared Thermal Imager Handheld Thermal Imaging Camera for Floor Heating Pipeline Inspection LTi120S

Item Type: IR Thermal Imager
Model: LTi120S
Battery: Lithium Battery 3.7V 2600mAh (built in battery)
Detector Type: Uncooled Vanadium Oxide
Pixel Spacing: 17μm
Response Band: 8-14μm
Infrared Resolution: 120 x 90 pixels
Thermal Sensitivity (NETD): <60mK
Field of View (FOV): 50°(H) x 38°(V)
Spatial Resolution (IFOV): 7.6mrad
Frame Rate: ≤ 25Hz
Minimum Imaging Distance: Approx. 0.1 meter / 0.33ft
Focusing: No Focusing
Temperature Measurement Range: -20-400℃
Temperature Measurement Accuracy: ±2% or ±2℃; Take the maximum value (-10-400℃, room temperature 25℃)

Features

1、6 COLOR PALETTES: The menu provides 6 color palettes for selecting infrared images, including white heat, black heat, rainbow, magma, iron red, and high contrast rainbow.
2、WITH USB CABLE: Equipped with a USB cable for charging, and the saving images can be exported to the computer through the USB cable connection.
3、MEASURING RANGE: The thermal imager has a temperature measurement range of -20-400℃, with high accuracy, good stability, and a wide range of application.
4、BUILT IN BATTERY: This infrared thermal imager has built in 2600mAh rechargeable lithium battery, ensuring long term work, which is efficient and practical.
5、OTHER FUNCTIONS: The IR thermal imager has IP54 protection, dustproof and waterproof, and equipped with LED light, can quickly distinguish even in dim scenes.
6、APPLICATIONS: Widely used in medical, firefighting, archaeology, transportation, agriculture, geology, energy, smelting, electronic manufacturing and other fields.

Package List

1 x Thermal Imager

1 x USB Cable

1 x User Manual

1 x Hanging Rope
