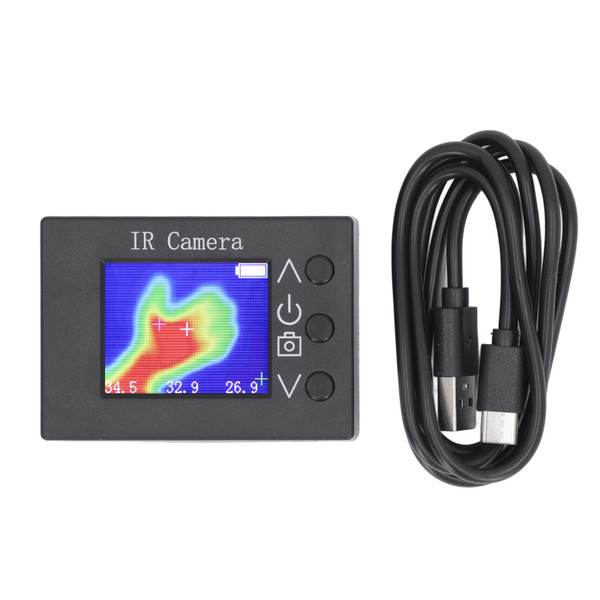

Handheld Thermal Imager 32x24 Infrared Sensor 1.8 Inch TFT Thermal Imaging Camera for Component Inspection

Item Type: Thermal Imager
Material: ABS
Battery: 200mAh Rechargeable Lithium Battery (Built in)
Infrared Sensor: JM_MLX90640_CSB
Infrared Sensor Pixels: 32x24
Display Screen: 1.8 Inch TFT Screen
Screen Resolution: 160x128
Temperature Measurement Range: -40℃ to 300℃
Refresh Rate: 8Hz
Field of View: 55°x35°
Power Port: USB Type C 5V 1A
Operating Temperature: 10℃ to 50℃
Operating Humidity: ≤70%
Size: Approx. 66x47x20mm/2.6x1.9x0.8in
Feature: Built in 4M Memory Chip, Can Store About 90 Images
Working Time: ≥4 Hours

Features

1、[Sensitive Infrared Sensor] Equipped with high sensitivity infrared sensor with 32x24 pixels far infrared array, this thermal imager offers clear and detailed imaging.
2、[1.8 Inch TFT Screen] With a resolution of 160x128, the screen clearly and intuitively displays center point temperature, maximum temperature, and minimum temperature.
3、[Real Time Inspection] The thermal camera has a fast 8Hz dynamic refresh rate, enabling real time measurements across a wide temperature range from ‑40℃ to +300℃.
4、[Photo Taking] This infrared thermal camera allows to take and save up to 90 images, supports easy photo copy and deletion when connected to a computer.
5、[Compact and Portable] With its integrated design, this thermal imager is small, lightweight, and portable, making it convenient to carry, can be operated smoothly without the need for additional devices.

Package List

1 x Thermal Imager
1 x USB Cable
