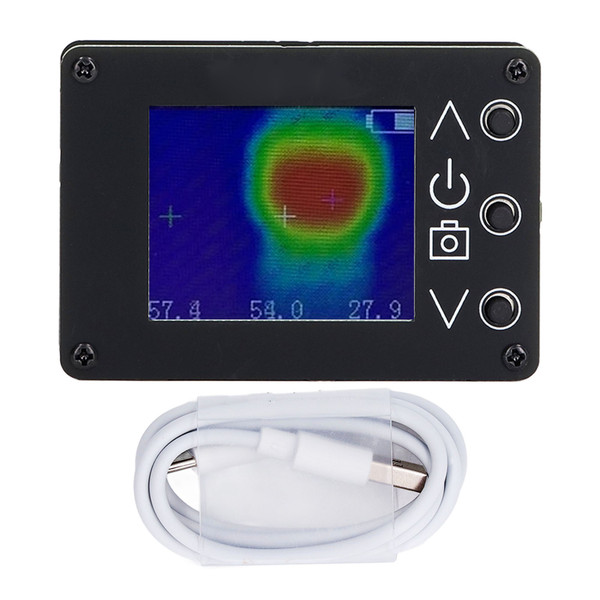

Thermal Imager 1.8 Inch TFT Screen 32x24 Pixel 160x128 Resolution Mini Infrared Thermal Imaging Camera

Item Type: Thermal Imager
Material: Aluminum Alloy
Battery: 210mAh rechargeable lithium battery (built in)
Infrared Sensor: MLX90640ESF BAB
Infrared Sensor Pixel: 32 x 24
Display Screen: 1.8 inch TFT display screen
Screen Resolution: 160 x 128
Temperature Measurement Range: -40℃ to 300℃
Refresh Rate: 8Hz
Field of View: 55° x 35°
Power Port: USB Type C 5V 1A
Working Temperature: 10℃ to 50℃
Working Humidity: ≤70%
Size: Approx. 66x47x20mm/2.6x1.9x0.8in
Feature: Built in 4M memory chip, capable of storing about 90 images

Features

1、WIDE USAGE: The thermal imager combines surface temperature measurement and real time thermal imaging function, ideal for non contact temperature measurement, body temperature detection and more.
2、CLEAR IMAGING: Equipped with high sensitivity infrared sensor and a 32x24 pixel far infrared array, comes with a 1.8 inch TFT color screen and a 160x128 resolution, this thermal imager provides clear imaging.
3、MULTI FUNCTION: This thermal imager features clear displays of center point temperature, maximum temperature, and minimum temperature, making it easy to read and understand.
4、REAL TIME MEASUREMENT: With an 8Hz dynamic refresh rate, this thermal imager can measure in real time, has a wide measurement range from ‑40℃ to +300℃.
5、PHOTO TAKING: The thermal imager camera has photo function, which can save up to 90 images and supports connection to a computer for copying and deleting photos.

Package List

1 x Thermal Imager

1 x USB Cable
