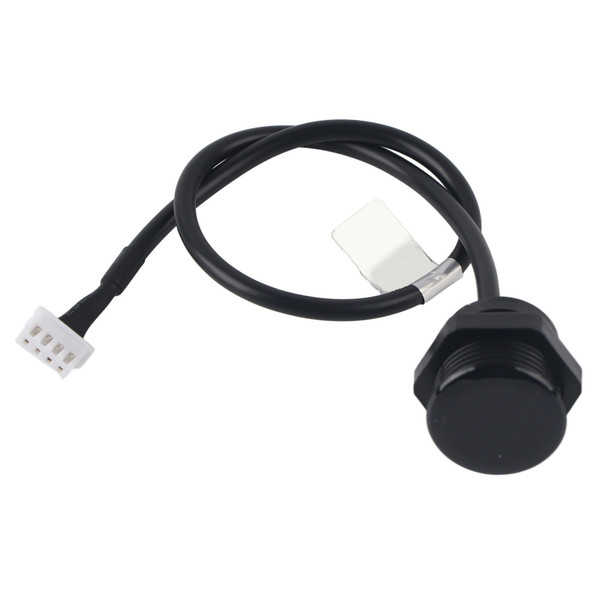

Laser Sensor Infrared Range Distance Detector Waterproof 1cm400cm for Robot Car(XKC-KL200-UART )

Item Type: Laser Sensor
Material: PC-VO Fireproof Material + Glass
Application: For robot obstacle avoidance, industrial automation control, AI robot intelligent recognition, unmanned car, smart parking, teaching research, smart infrastructure, smart home.
Operating Voltage:
XKC-KL200-V: High and low level signal, power supply DC5-24V.
XKC-KL200-NPN: NPN output, power supply DC5-24V.
XKC-KL200-UART: Serial port output, power supply DC5-24V.
Sensing Distance: Approx. 1 ~ 400cm / 0.4 ~ 157.5in, adjustable distance.
Induction Angle: 30-40° Cone Angle
Sensing Method: Active
Quiescent Current: <3.5 mA
Load Current: 300mA
Working Environment Temperature: -20~85℃
Storage Temperature: -20~85℃
Line Length: Approx. 15cm / 5.9in(±10mm / 0.4in)
Default Terminal: XH2.54-4P
Waterproof Performance: IP67
Thread Size: Approx. M22 x 1.5mm / 0.1in

Features

1、Laser Range Sensor: Adopts OTF standard, multi layer filter cover and customized optical lens to have easy and quick sensing.
2、Accurate Detecting: From 10mm to 4000mm, the adjustable senisng distance guarantees a high accuracy up to millimetre level.
3、Wide Use: Widely applied in various fields, such as robot obstacle avoidance, industrial automation control, unmanned car, etc.
4、Great Durability: IP67 waterproof grade enables excellent resistance to heat, scratching, impact, ultraviolet, stain and so on.
5、Easy Installation: Concealed thread fixing will take up little space and allows for a beautiful and convenient installation as well.

Package List

1 x Laser Sensor
