Product Overview

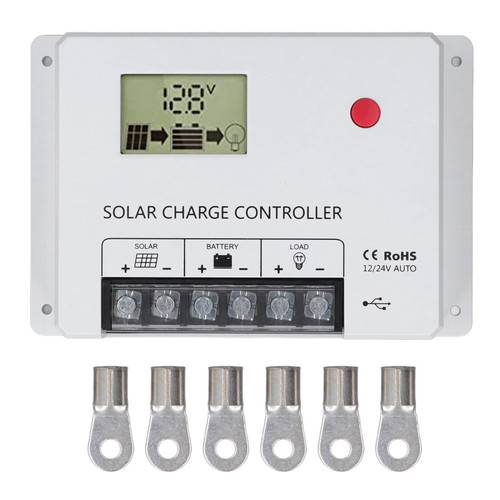

Item Type: Solar Charge Controller
Material: ABS
Rated Current: 10A
Display: LCD Screen
Self-Consumption: <10MA
Overcharge Protection: 14.4V/28.8V
Over Discharge Protection: 10.7V/21.4V
Over Discharge Recovery: 12.6V/25.2V
Dual USB Output: 5V/2A (Charging mobile phone, etc.)
Working Temperature: -35℃-60℃
Regulator Suitable Batteries: OPEN, AGM, GEL
Weight: Approx. 152g / 5.4oz
Product Size: Approx. 13.5x7x3.2cm / 5.3x2.8x1.3in
How to Use:
Material: ABS
Rated Current: 10A
Display: LCD Screen
Self-Consumption: <10MA
Overcharge Protection: 14.4V/28.8V
Over Discharge Protection: 10.7V/21.4V
Over Discharge Recovery: 12.6V/25.2V
Dual USB Output: 5V/2A (Charging mobile phone, etc.)
Working Temperature: -35℃-60℃
Regulator Suitable Batteries: OPEN, AGM, GEL
Weight: Approx. 152g / 5.4oz
Product Size: Approx. 13.5x7x3.2cm / 5.3x2.8x1.3in
How to Use:
Features
1、PWM automatic focus tracking charging, high charging efficiency, non‑stop detection during the charging process.
2、Built‑in overheating, overcurrent, short circuit, open circuit protection, troubleshooting, and automatic controller recovery.
3、Dual‑way MOS tube anti‑backflow circuit, high‑power charging mode, ultra‑low heat.
4、Large‑screen LCD display, adjustable charge and discharge parameters, with power‑off memory function.
5、Dual reverse current protection, low heat generation, built‑in short circuit protection, open circuit protection, reverse connection protection, overload protection.
Package List
1 x Solar Charge Controller
1 x Chinese and English Manual
Package Weight and Dimension
| Weight | 0.66 lb |
| Width | 3.12 Inch |
| Height | 1.56 Inch |
| Length | 5.46 Inch |
