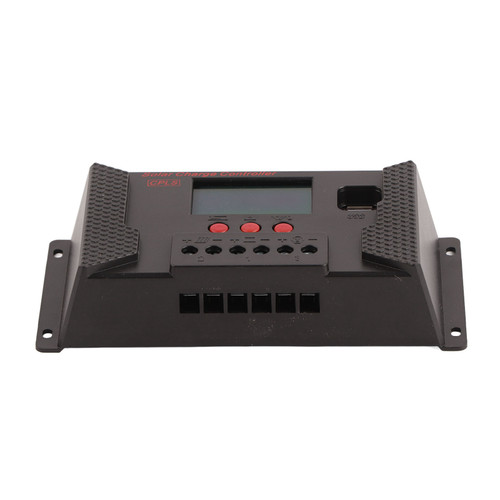

PWM Solar Charge Controller Parameter Automatic Adjustment Large LCD Display Solar Charge Regulator 60A 12V 24V

Item Type: PWM Solar Charge Controller
Material: ABS
Current: 60A
Working Temperature: -35℃ to 60℃
Altitude: ≤3000m
Protection Grade: IP32

Features

1、Support Five Battery Types: This solar controller supports custom, sealed acid (factory default), colloidal acid, open acid, and lithium battery (default lithium iron phosphate).
2、PWM Charging: The regulator adopts 32 bit high speed control chip for better performance, complete PWM charging management, which can be set as off charging to better support voltage sensitive loads.
3、Parameter Adjustable: The controller adopts temperature compensation, could automatically adjust charging parameters. Rich load working modes are convenient for use in various DC loads.
4、Multiple Protections: Built in reverse connection, open circuit, high temperature, over current and short circuit protection (settable), all are self recovery type, without damaging the controller.
5、Humanized Design: The controller features dual MOS anti backflow circuit, with ultra low heat, has lithium battery activation function. Large LCD display, humanized browsing, dynamic interface, intuitive for operation.

Package List

1 x PWM Solar Charge Controller

6 x Terminal

1 x Manual
