Product Overview

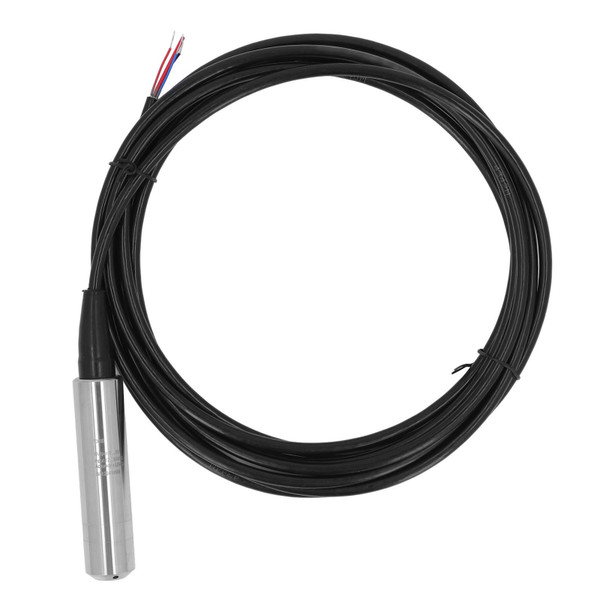

Item Type: Liquid Level Transmitter
Accuracy: ± 0.5% F. S
Stability: <0.5% F.S/year
Working Temperature: -20~+85℃
Storage Temperature: -40~+100℃
Tested Medium: Gas or liquid compatible with 304 and 316L stainless steel, fluororubber or nitrile rubber.
Electrical Performance: Three Wire
Output Signal: 0-5V
Power Supply: 12~30VDC
Electrical Connection: M14 Waterproof Outlet
Protection Grade: Ip68
Pressure Interface: M20 x 1.5, throw in type.
Accuracy: ± 0.5% F. S
Stability: <0.5% F.S/year
Working Temperature: -20~+85℃
Storage Temperature: -40~+100℃
Tested Medium: Gas or liquid compatible with 304 and 316L stainless steel, fluororubber or nitrile rubber.
Electrical Performance: Three Wire
Output Signal: 0-5V
Power Supply: 12~30VDC
Electrical Connection: M14 Waterproof Outlet
Protection Grade: Ip68
Pressure Interface: M20 x 1.5, throw in type.
Features
1、Smart Testing: Equipped with a long cable, the Throw in liquid level transmitter enables wide testing range and easy operation.
2、High Accuracy: Comes with integrated chip, 3mm pressure hole and 45° oblique angle, the level sensor probe has high accuracy.
3、Better Design: 316L stainless steel diaphragm and main body together with IP68 protection grade ensures stable work performance.
4、Extensive Use: Allows for wide application in testing fire water tank, river and lake, acid and alkali tank and hydraulic test.
5、Easy to Install: Designed to have a compact size and a light weight as well, the water level transmitter is simple to install.
Package List
1 x Liquid Level Transmitter
1 x User Manual
Package Weight and Dimension
| Weight | 1.69 lb |
| Width | 11.7 Inch |
| Height | 4.29 Inch |
| Length | 11.7 Inch |
