Product Overview
Accuracy: ± 0.5%F.S
Stability: <0.5%F.S per year
Operating Temperature: -20-85℃
Storage Temperature: -40-100℃
Tested Medium: Air or liquid compatible with 304 and 316L stainless steel, fluororubber or nitrile rubber
Electrical Performance: 4 Wire
Output Signal: RS485
Power Supply: 10-30VDC
Electrical Connection: M14 waterproof outlet
Protection Grade: IP68
Pressure Interface: M20 x 1.5, Throw in Type
Features

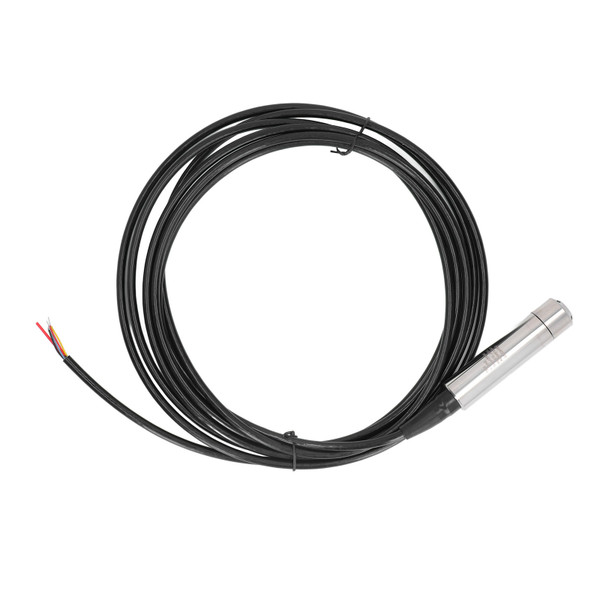

1、Specifications: Throw in type liquid level transmitter, 4 wire design, RS485 output signal, 45 degree bevel design, stable and reliable in performance.
2、Durable Material: Stainless steel body, polyester wire, 316L stainless steel diaphragm are used, the liquid level transmitter has good impact resistance.
3、High Accuracy: The integrated chip ensures strong anti interference and good stability, greatly improving the accuracy of water level measurement.
4、Waterproof Design: The water level sensor has IP68 protection, with M14 waterproof outlet line, which can be used for deep water area measurement.
5、Wide Application: Widely used for hydraulic testing of fire water tanks, rivers and lakes, acid and alkali tanks, etc., which is convenient and practical.
Package List
1 x Liquid Level Transmitter
2 x User Manual
Package Weight and Dimension
| Weight | 2.16 lb |
| Width | 11.7 Inch |
| Height | 5.85 Inch |
| Length | 11.7 Inch |
