Product Overview

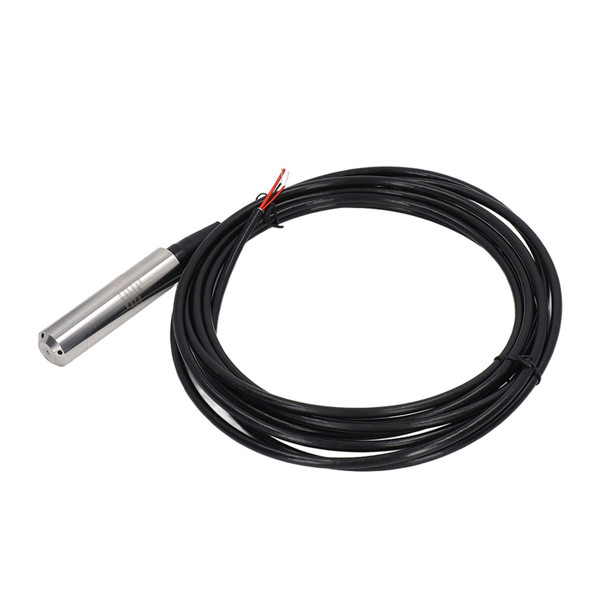

Item Type: Liquid Level Transmitter
Material: 304 stainless steel, 316L stainless steel, Fluoroelastomer, NBR
Accuracy: ±0.5% F.S
Stability: <0.5%F.S/year
Operating Temperature: -20-85℃
Storage Temperature: -40-100℃
Measured Media: Gases or liquids compatible with 304 and 316L stainless steel, fluoroelastomer or NBR
Electrical Performance: 2 wire system
Output Signal: 4-20mA
Power Supply: 10-36VDC
Electrical Connection: M14 waterproof outlet wire
Protection Class: IP68
Pressure Connection: M20 x 1.5, input type
Material: 304 stainless steel, 316L stainless steel, Fluoroelastomer, NBR
Accuracy: ±0.5% F.S
Stability: <0.5%F.S/year
Operating Temperature: -20-85℃
Storage Temperature: -40-100℃
Measured Media: Gases or liquids compatible with 304 and 316L stainless steel, fluoroelastomer or NBR
Electrical Performance: 2 wire system
Output Signal: 4-20mA
Power Supply: 10-36VDC
Electrical Connection: M14 waterproof outlet wire
Protection Class: IP68
Pressure Connection: M20 x 1.5, input type
Features
1、IP68 Protection Grade: The level probe has a protection grade up to IP68, which is not afraid of deep water area measurement.
2、Integrated Chip: The liquid level probe is a built in integrated chip with good anti interference property and stable performance.
3、Liquid Level Transmitter: 3mm pilot hole, 45° angled design, 316L stainless steel diaphragm, impact resistant, layers of careful design for more accurate measurement.
4、Wide Range of Application: The liquid level sensor is suitable for fire fighting water tanks, river and lake and hydraulic testing.
5、Outstanding Material: The level sensor probe is made of stainless steel and equipped with polyester leads for durability.
Package List
1 x Liquid Level Transmitter
1 x Instruction
Package Weight and Dimension
| Weight | 2.04 lb |
| Width | 11.7 Inch |
| Height | 5.46 Inch |
| Length | 11.7 Inch |
