Product Overview

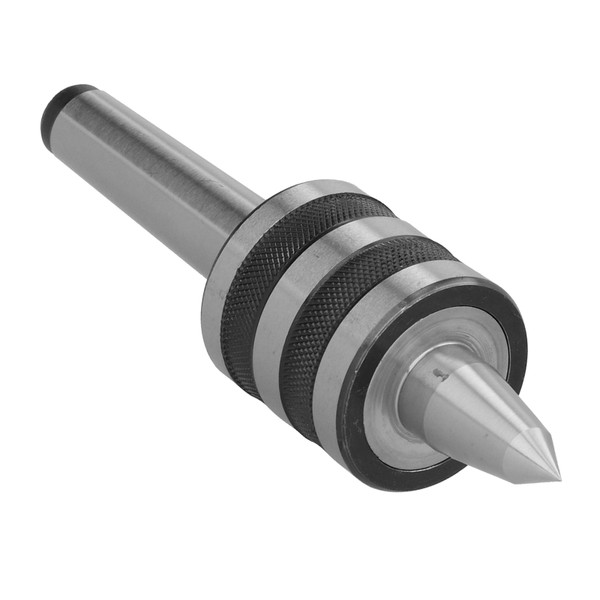

Item Type: Live Center
Model: MT2 black embossing
Material: Steel
Accuracy: 0.01mm
Morse Taper: MT2
Connector Material: T10 alloy tool steel
Tip Length: Approx. 34mm / 1.3in
Total Length: Approx. 144mm / 5.7in
Maximum Outer Diameter: Approx. 39mm / 1.5in
Applicable Machine Tools: Lathes, woodworking
Model: MT2 black embossing
Material: Steel
Accuracy: 0.01mm
Morse Taper: MT2
Connector Material: T10 alloy tool steel
Tip Length: Approx. 34mm / 1.3in
Total Length: Approx. 144mm / 5.7in
Maximum Outer Diameter: Approx. 39mm / 1.5in
Applicable Machine Tools: Lathes, woodworking
Features
1、MT2 black embossed live center can be used for machine tool shaft parts with an accuracy of 0.01mm, which can improve work efficiency.
2、Made of high‑quality high‑speed steel, 40Cr steel and alloy tool steel, with high hardness and wear resistance, it can be used for a long time.
3、60° center design, running in its own high‑speed bearing, can be used on the non‑drive end or tailstock end of the machine.
4、Specially designed for CNC lathes, can achieve high accuracy, good balance and smoothness, and can effectively steer.
5、Very suitable for supporting your work at the head and tail of the machine tool, processing machine tool rotating shaft parts.
Package List
1 x Live Center
Package Weight and Dimension
| Weight | 1.16 lb |
| Width | 1.95 Inch |
| Height | 1.95 Inch |
| Length | 5.85 Inch |
